Wunderlich Quick Connect cable kit for navigation & Motomedia

Wunderlich Quick Connect cable kit for navigation & Motomedia

Part Number: 21176-400

$85.00
$85.00
Sale Sold out

Fits Models:

Fits R 1300 GS | R 1250 GS | R 1250 GS Adv | R 1200 GS LC (2013 - 2016) | R 1200 GS LC (2017 on) | R 1200 GS LC Adv. (2014 on ) | R 1200 GS | R 1200 GS Adv. | R 1250 R | R 1200 R LC | R 1200 R | R 1250 RS | R 1200 RS LC | R 1250 RT | R 1200 RT LC (2014 on) | R nineT | R nineT /5 | R nineT Pure | R nineT Racer | R nineT Scrambler | R nineT Urban G/S | R 18 Roctane | R 18 (2020 on ) | R 18 B | R 18 Classic | R 18 Transcontinental | F 900 XR | F 900 R | F 850 GS | F 850 GS Adv | F 800 GS | F 800 GS Adv | F 750 GS | F 700 GS | F 800 R | F 800 S | F 800 ST | F 800 GT | C 400 X | C 400 GT | C 650 Sport | C 650 GT | C 600 Sport | G 310 GS | G 310 R | K 1600 GT | K 1600 GTL | K 1600 Grand America | K 1600 B | S 1000 XR | S 1000 R (2021on ) | M 1000 R (2023 on ) |S 1000 RR (2019 on -)

When using a navigation system or another end device on the motorcycle, the question arises of how do you achieve a continuous power supply? You can lay a cable directly from the battery to the cockpit area, but this takes time and effort. Then there’s also the fact that this type of power supply has to be protected with a fuse. Also, the battery will drain fast if you forget to switch off the end device itself after switching off the ignition.

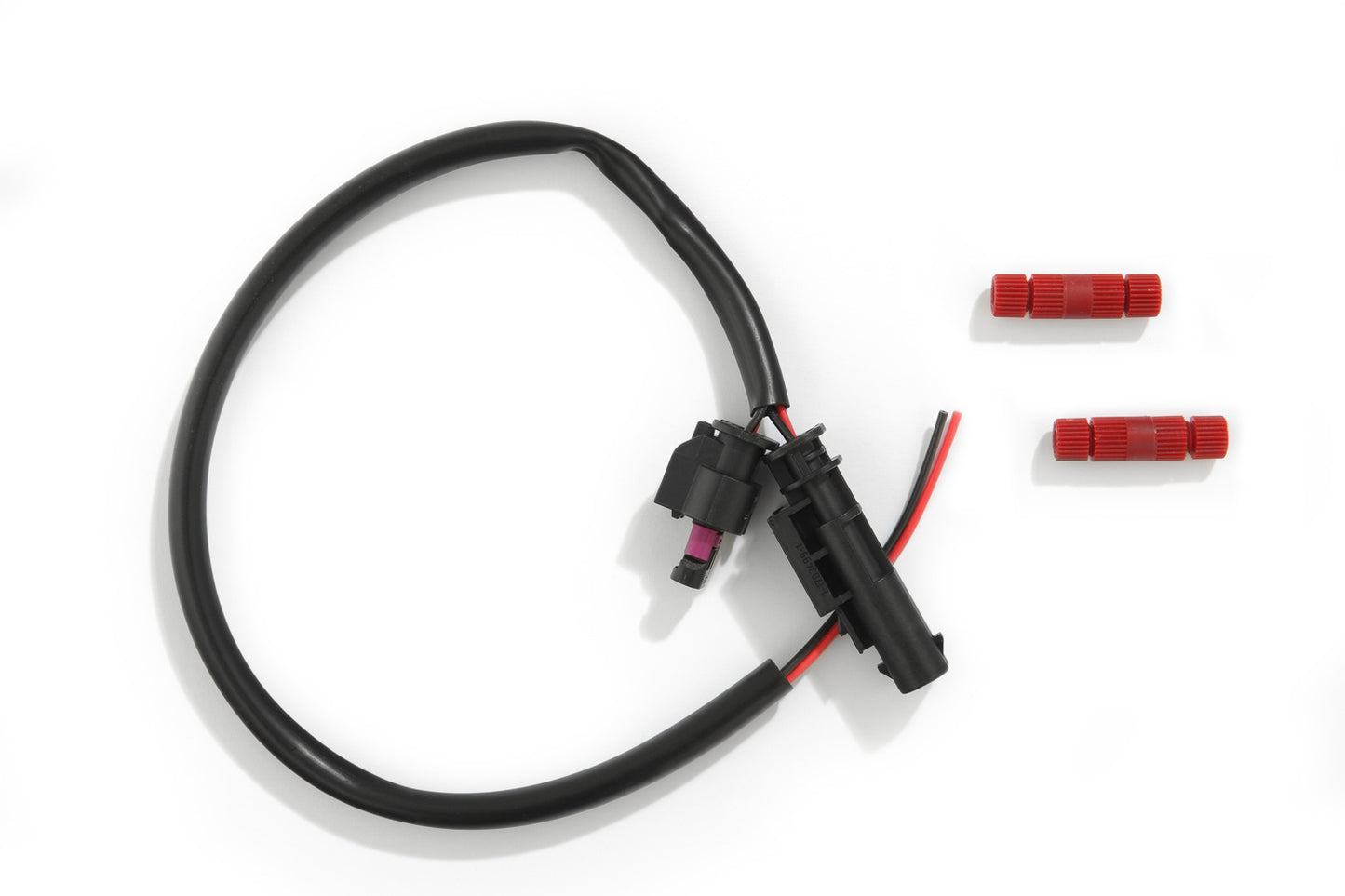

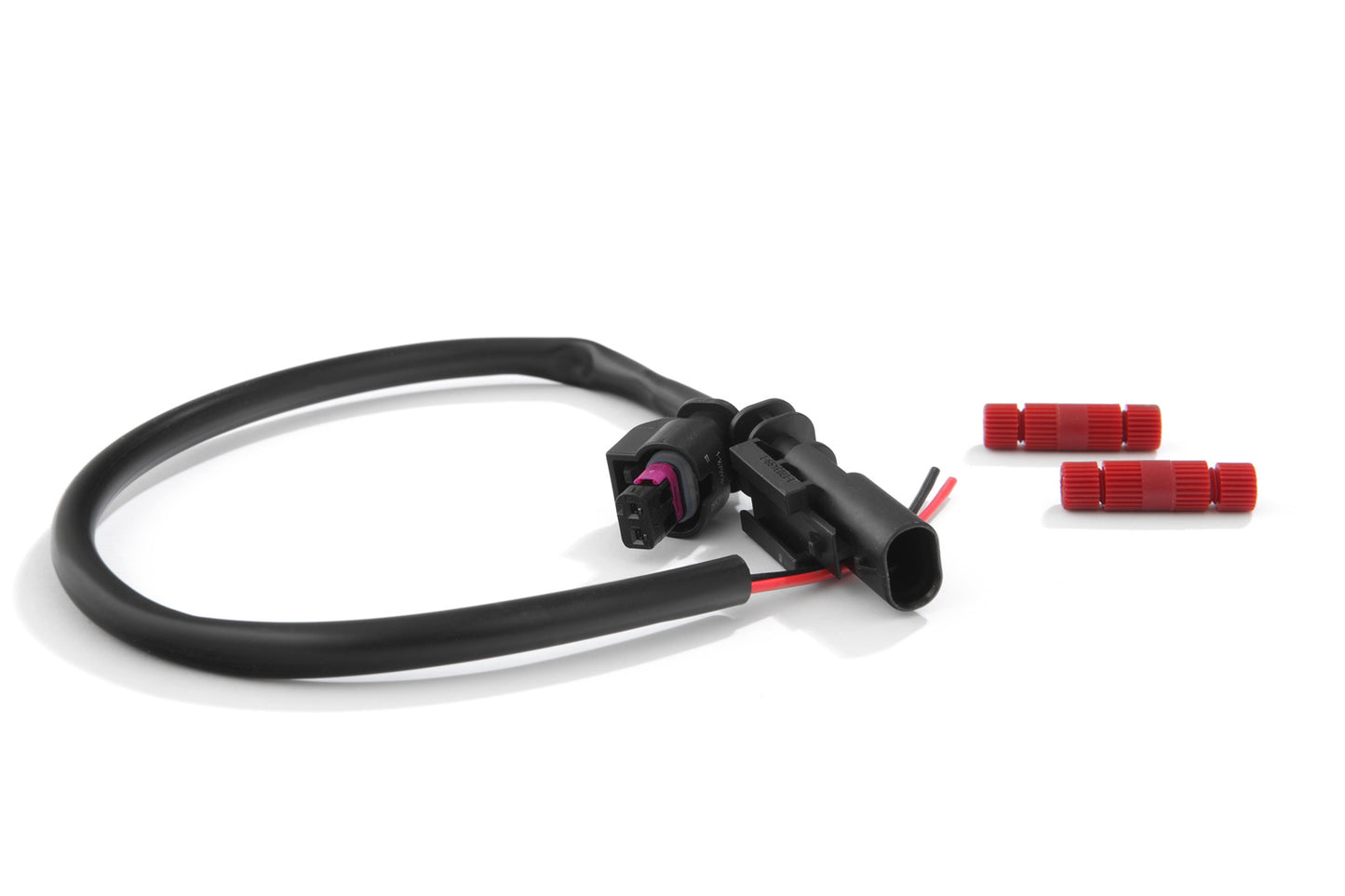

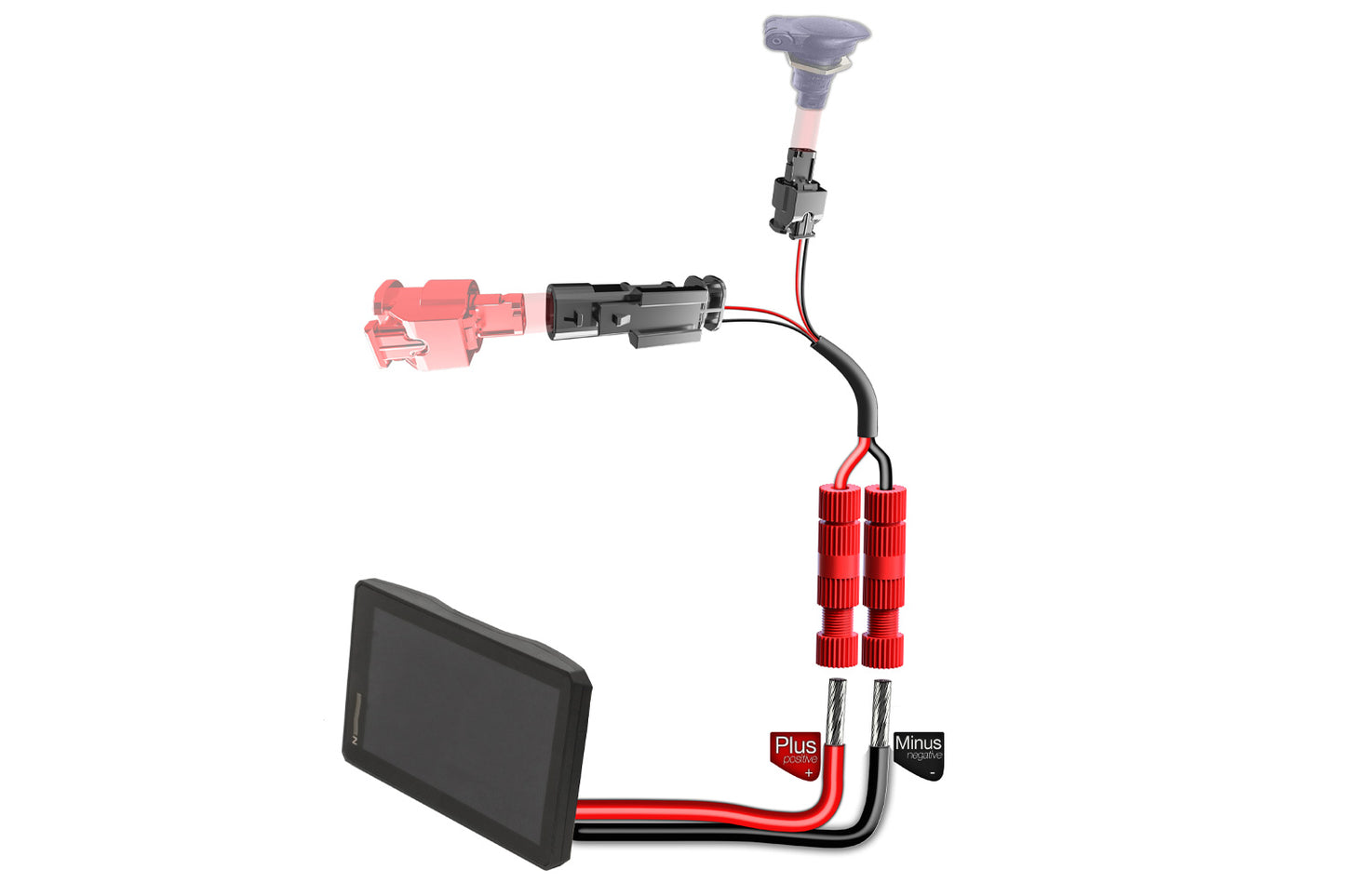

Our »Quick Connect« cable kit offers a professional, secure solution. It’s Plug & Play with pre-assembled plugs that plug into the back of the original BMW power connections of the DIN or USB socket and integrated smartly into the on-board system’s power supply. The power cable of the end device is then connected to the »Quick Connect« cable kit with the help of the standard-compliant quick connector supplied with the assembly kit. Done!

With this solution, the power supply is automatically disconnected when you switch off the motorcycle ignition, so the battery can’t be drained unnoticed. The fuse (max. 5 A) is provided by the on-board system. And the DIN and USB sockets are left free for use by other consumers!

The facts

Function

  • Professional, reliable power supply for your navigation or other end devices in the cockpit - instead of additional messy cables when laying cables between the battery and cockpit
  • When you switch off the ignition, the power supply to the end device is automatically disconnected so the battery can’t be drained unnoticed
  • The fuse for the power supply is provided by the on-board system, so no additional fuse is required
  • The maximum load via the on-board system is 5 A (including the possible consumers in the sockets)
  • An important advantage: The USB and DIN sockets remain free for other consumers

Technical information

  • Dimensions
    • Length of the »Quick Connect« cable kit 390 mm
  • Electrical fuse
    • Max. 5 A including the possible consumers in the sockets

Your Wunderlich benefits

  • Wunderlich product. Small series. Hand crafted.
  • Functional and integrated.
  • Made by Wunderlich
  • Made in Germany
  • 5 year warranty
