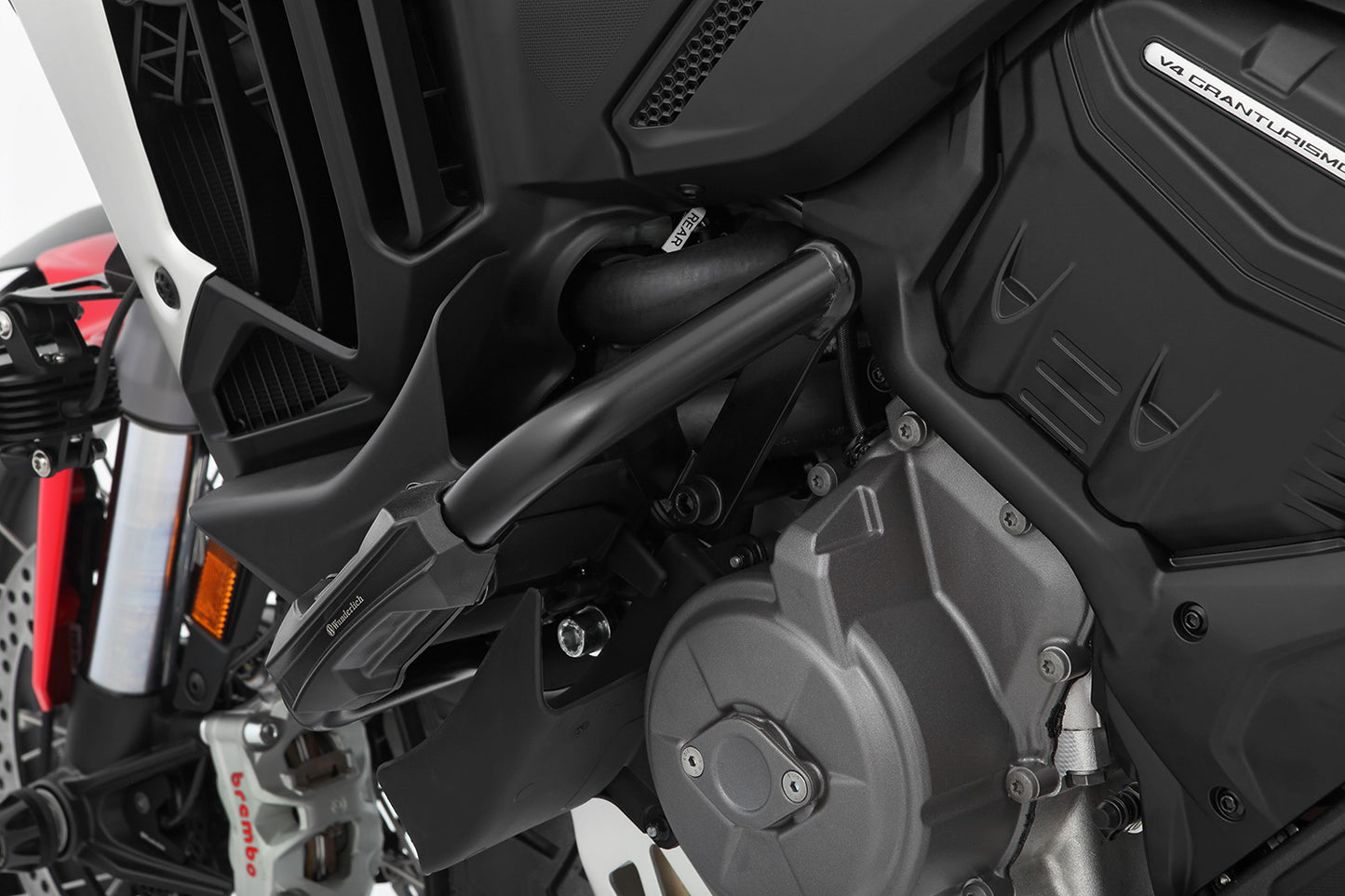

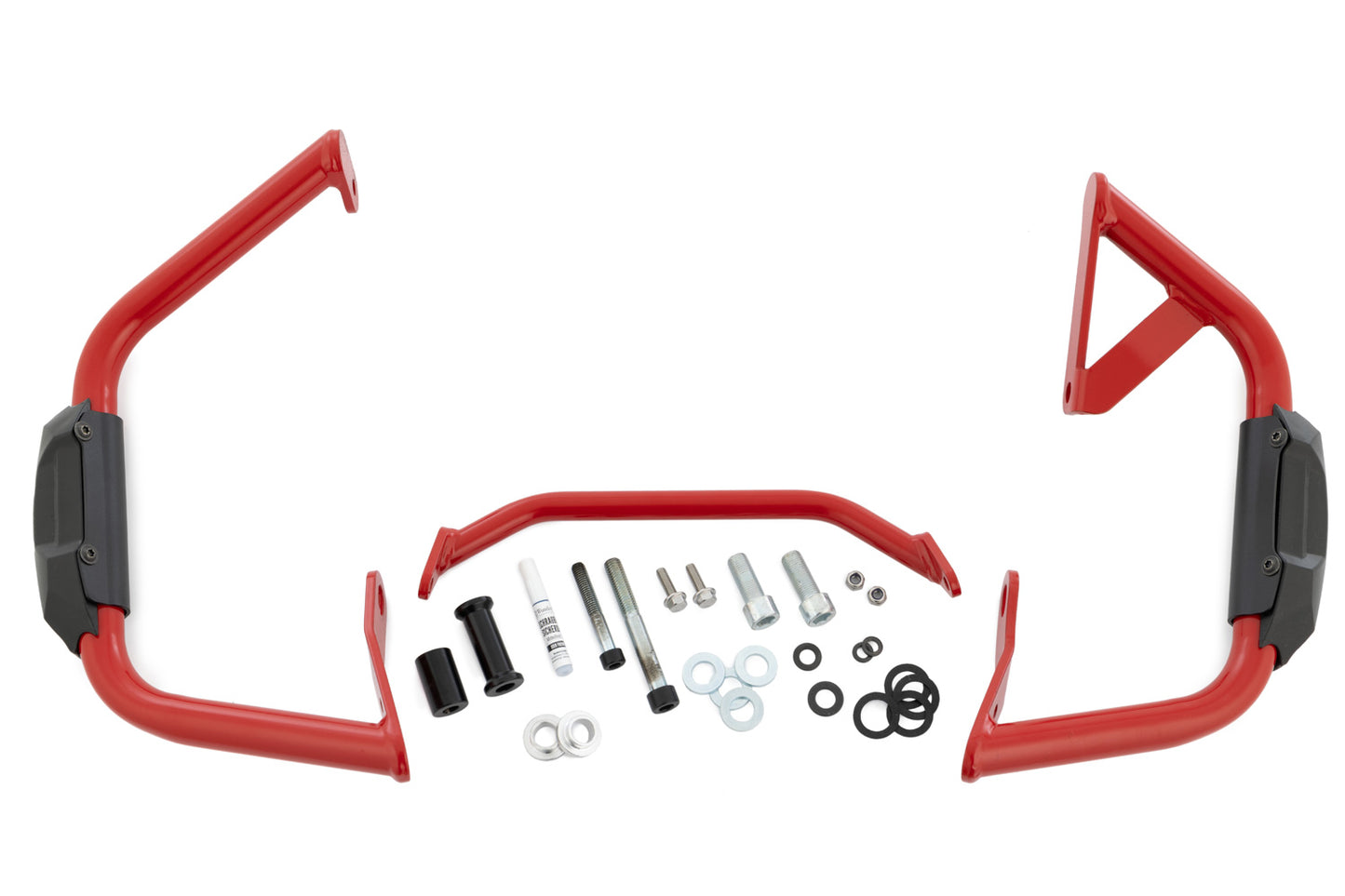

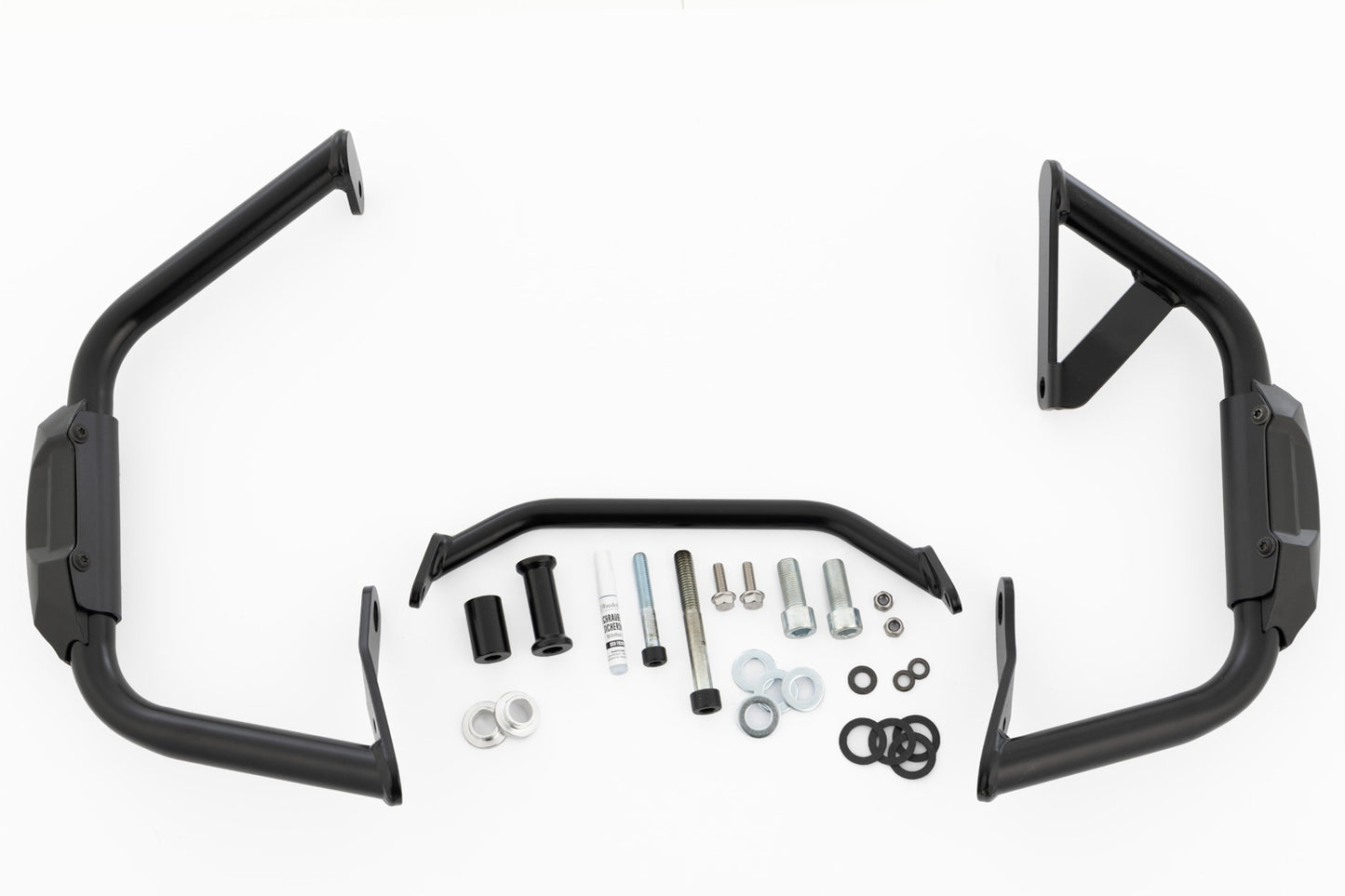

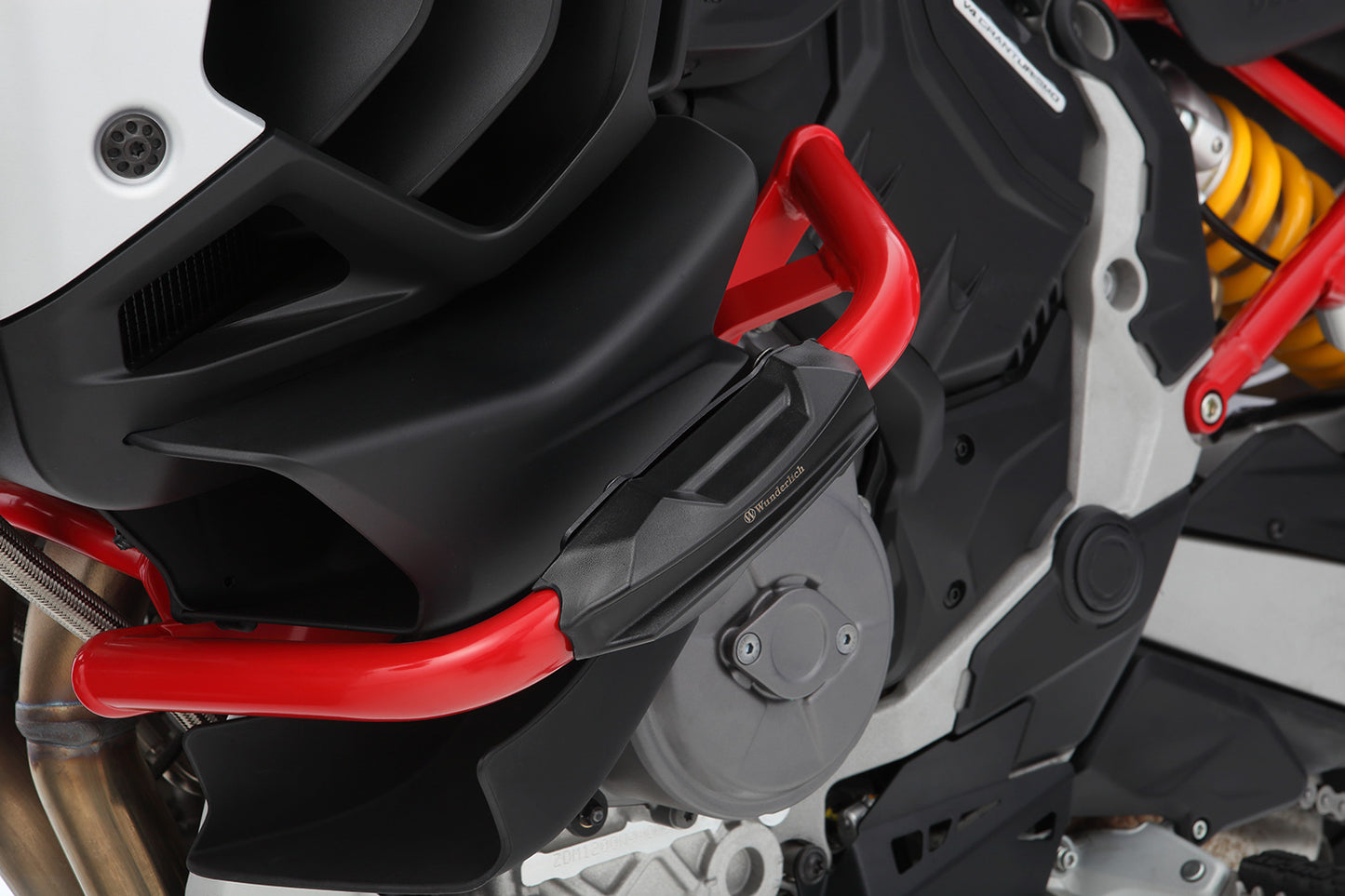

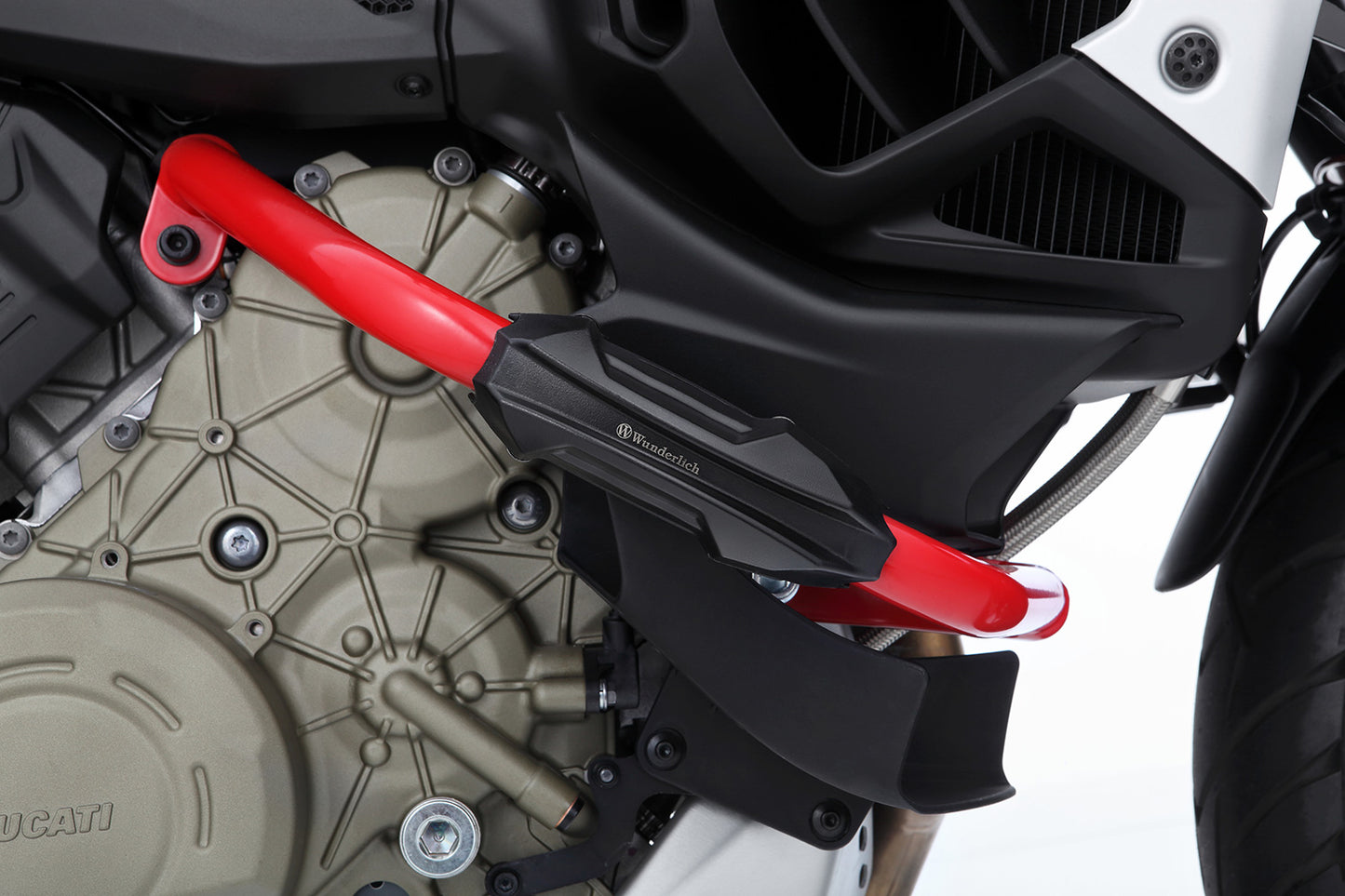

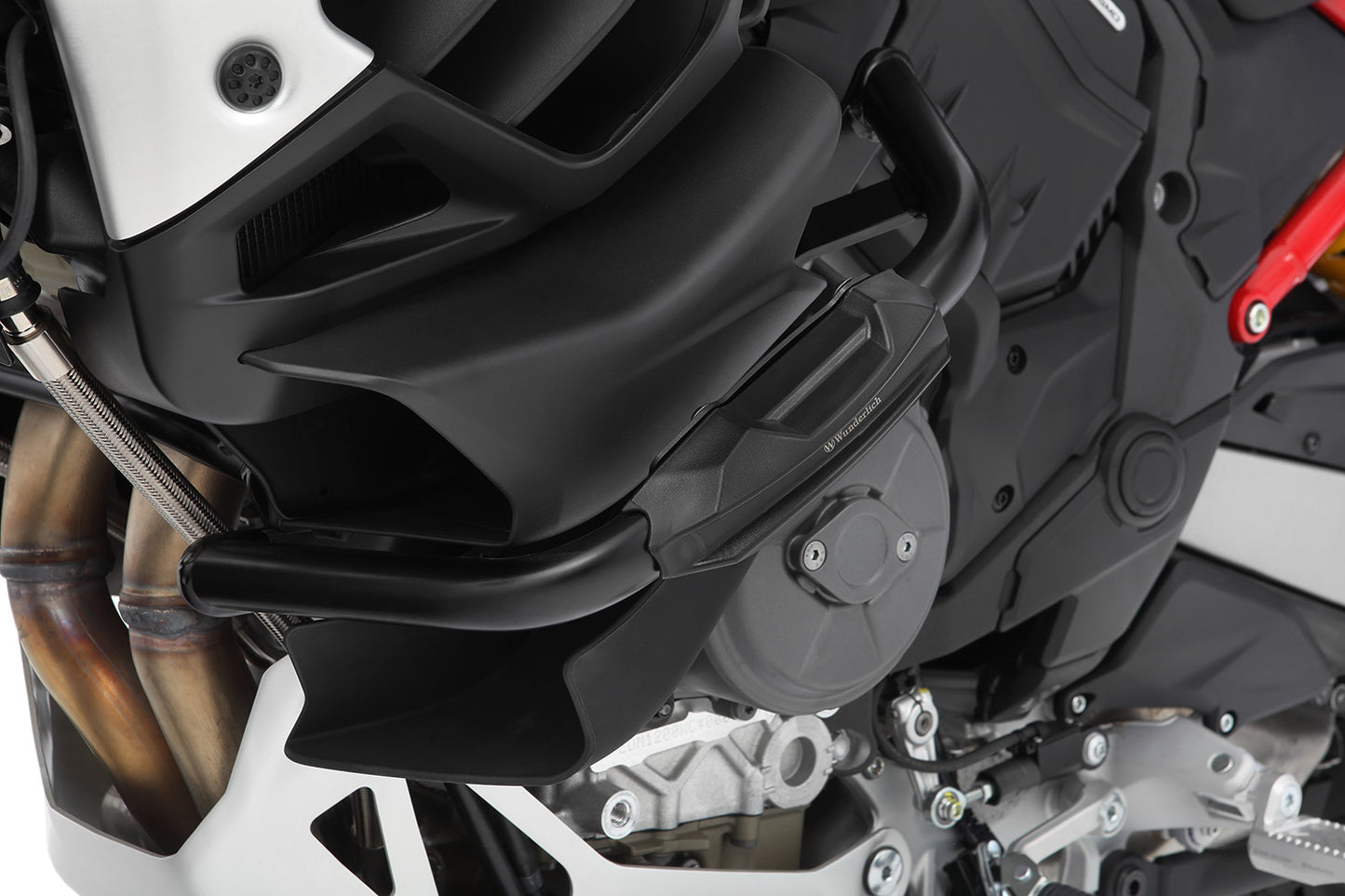

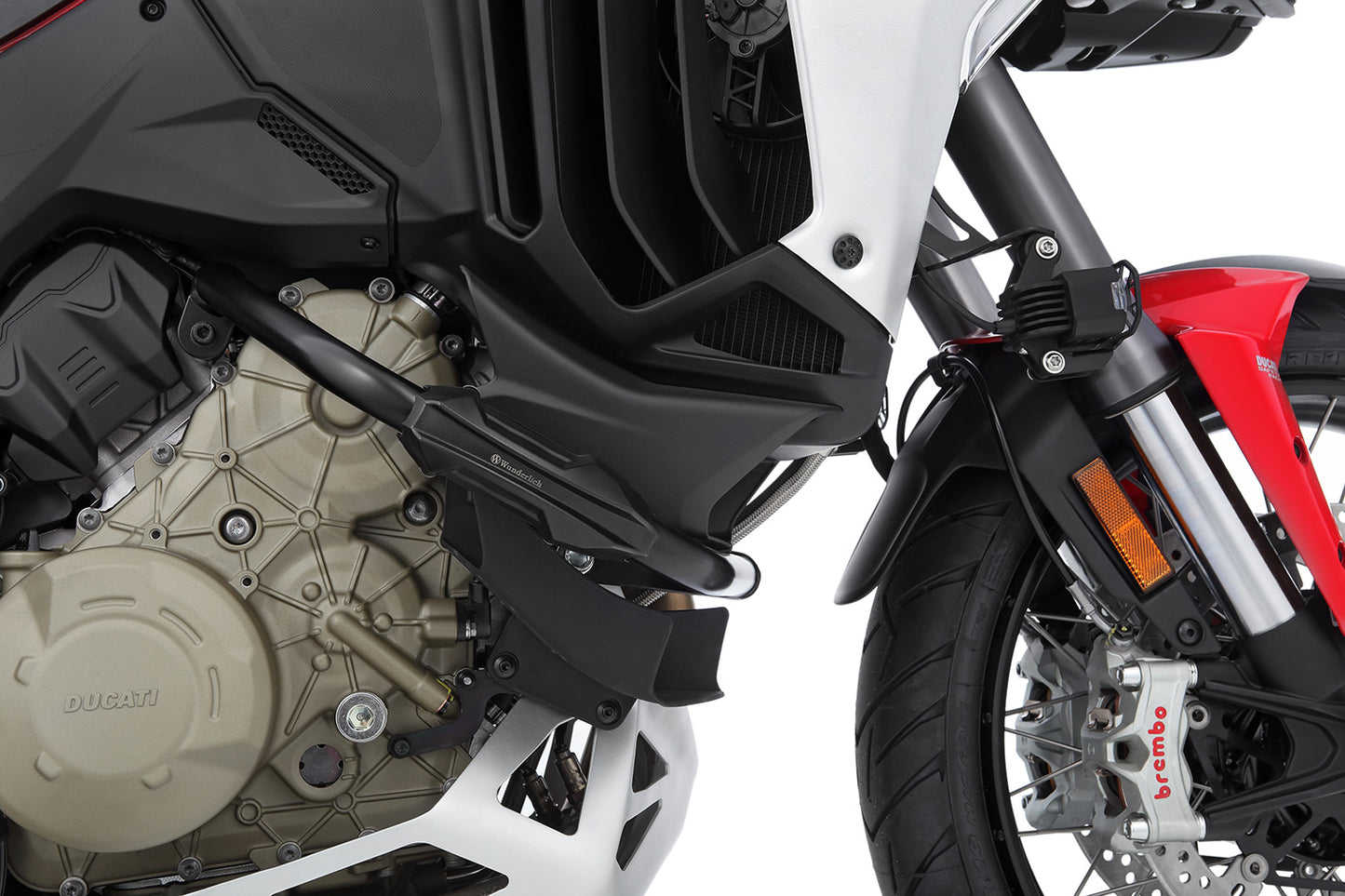

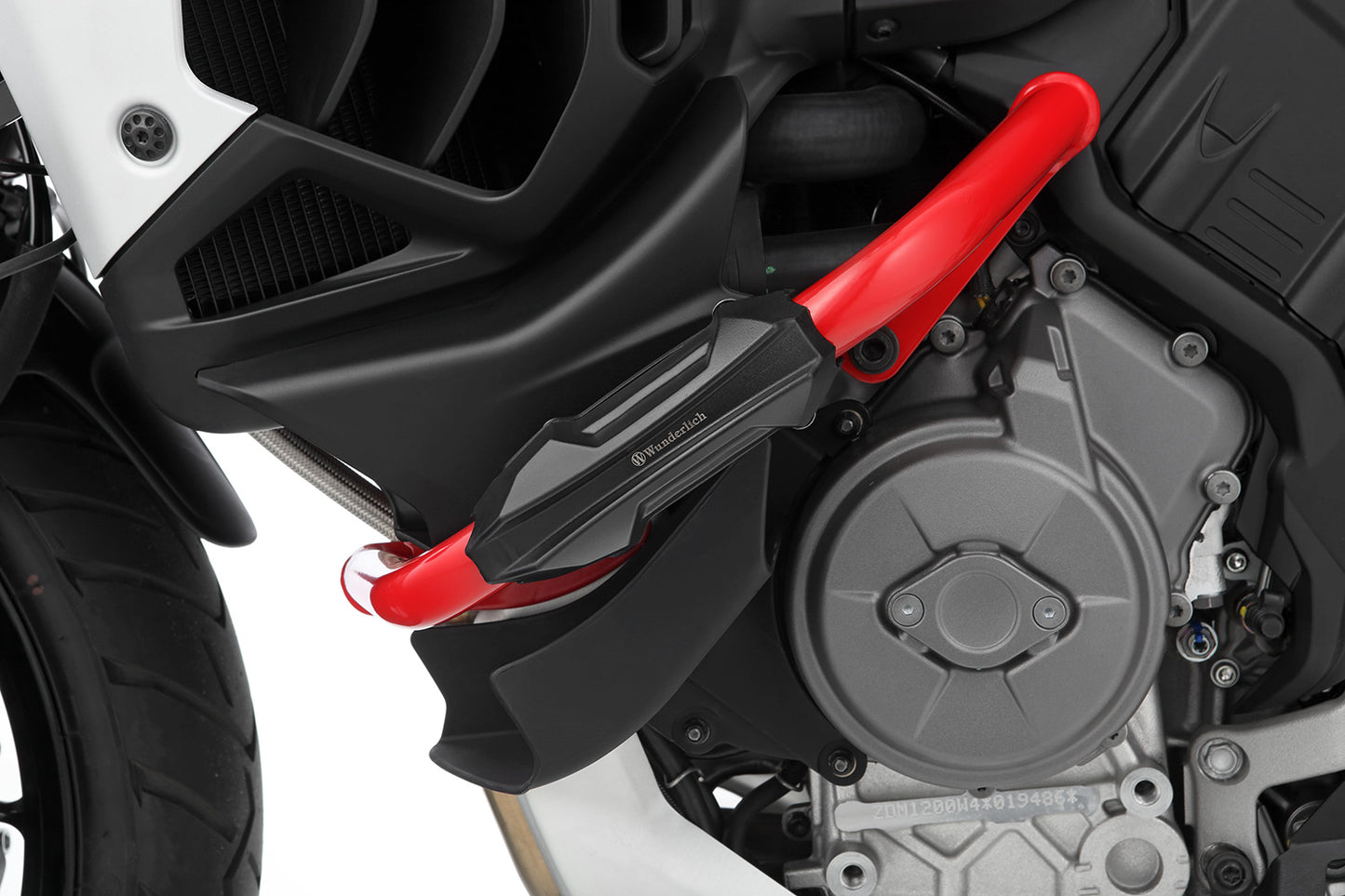

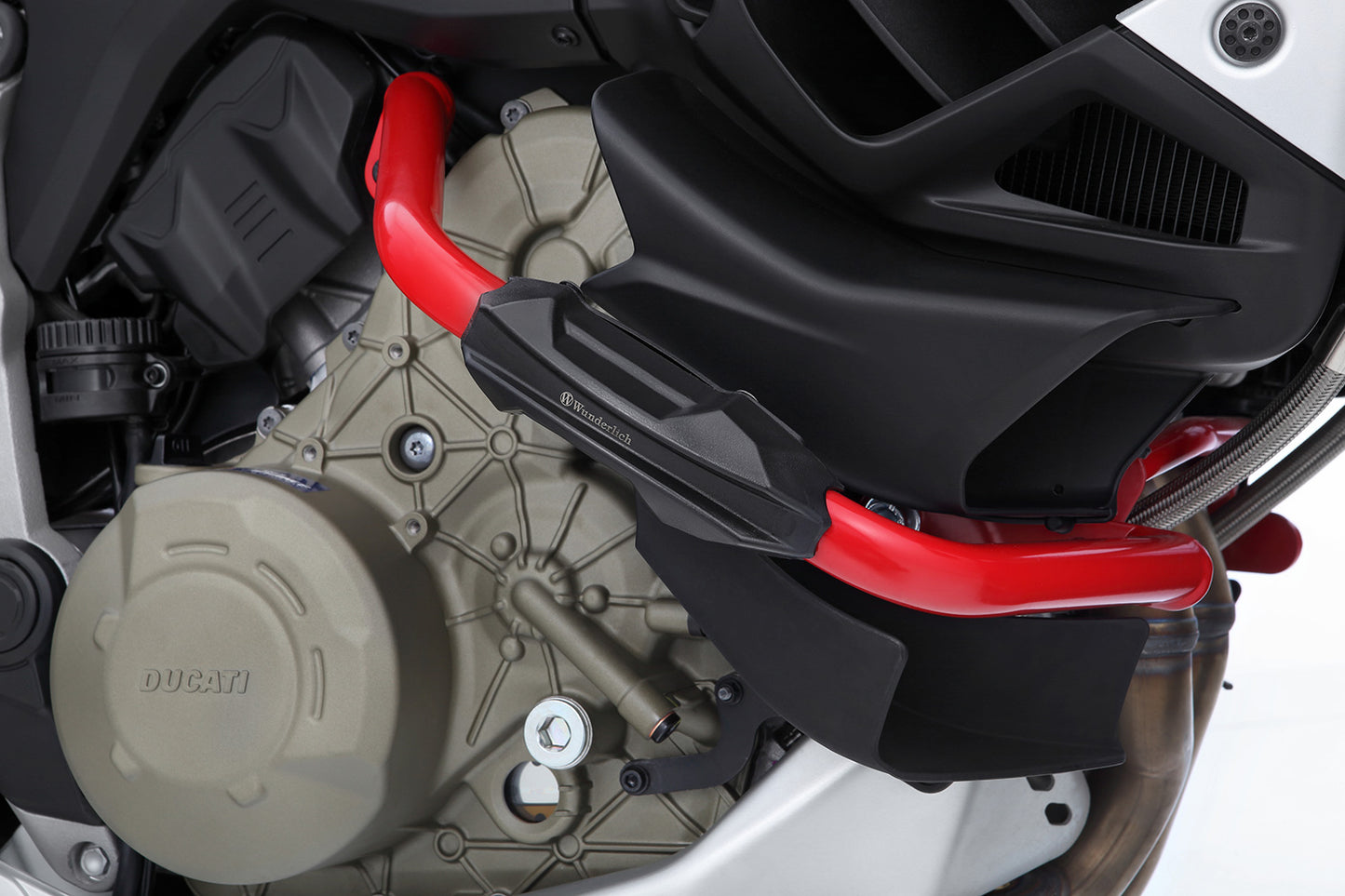

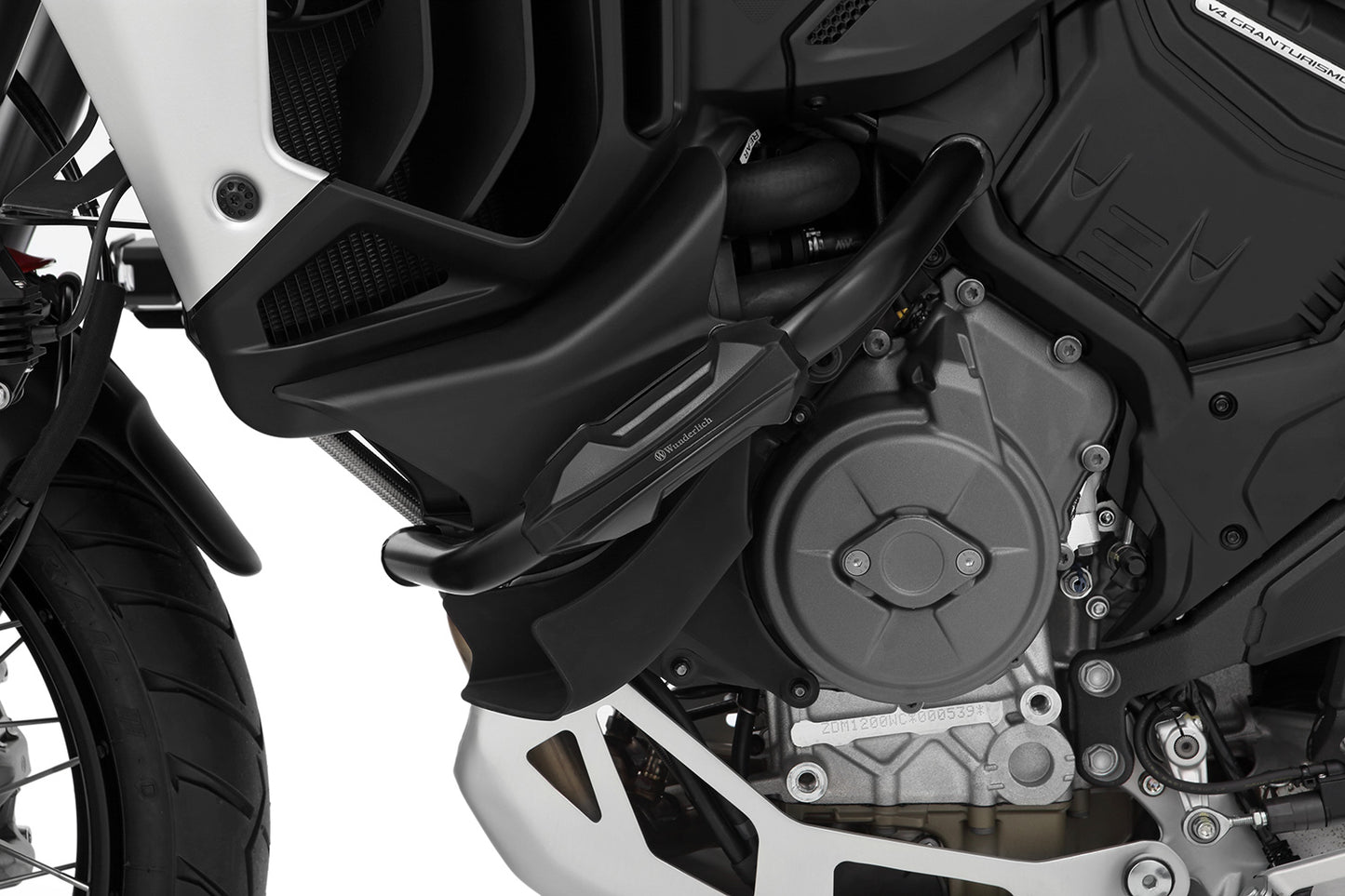

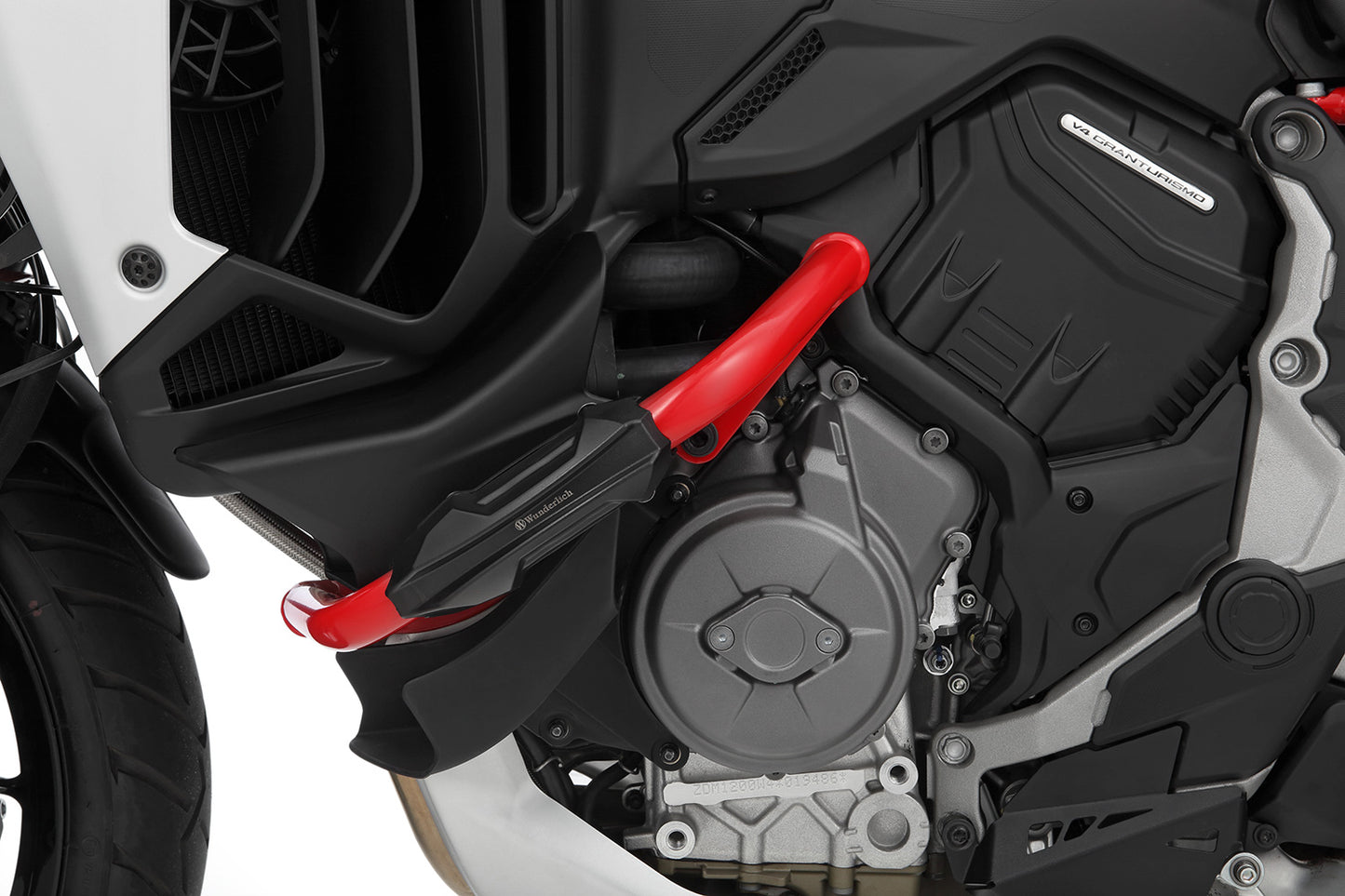

This engine guard concept was also developed with maximum protection in mind. The geometry of the compact,three-part guard reliably protects the high-performance engine and the power units. It consists of a right and left guard with two mounting points each and a composite strut. The tailor-made guardrail composite fits snugly and gains additional stability and rigidity due to its stocky structure. It is solidly bolted to two selected mounting points. The moments and forces that occur in the event of a fall or rollover are thus distributed over a total of four points. This reduces the load peaks when external forces are applied. The engine guard thus reduces the risk of damage in the event of a fall or rollover.

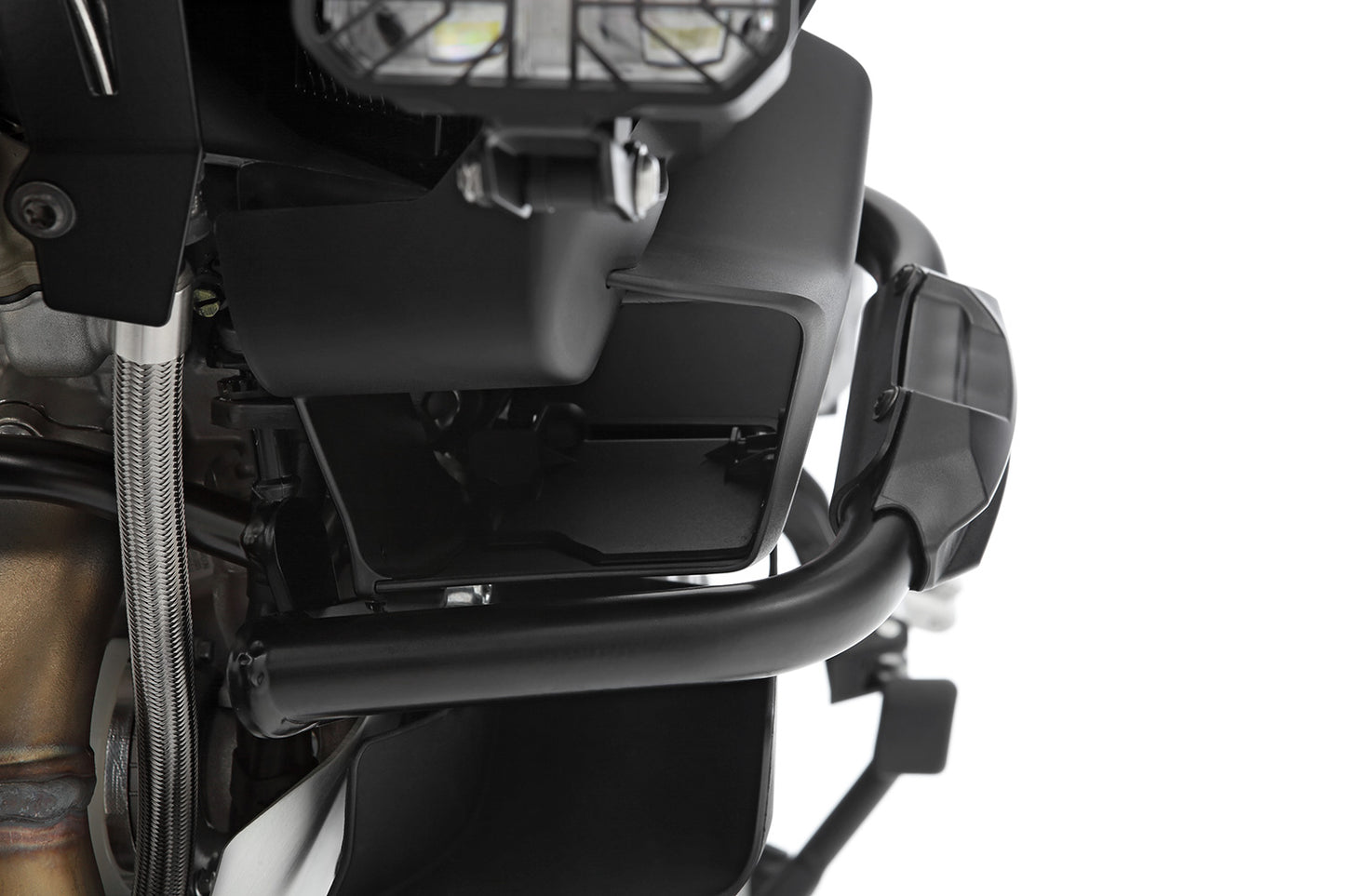

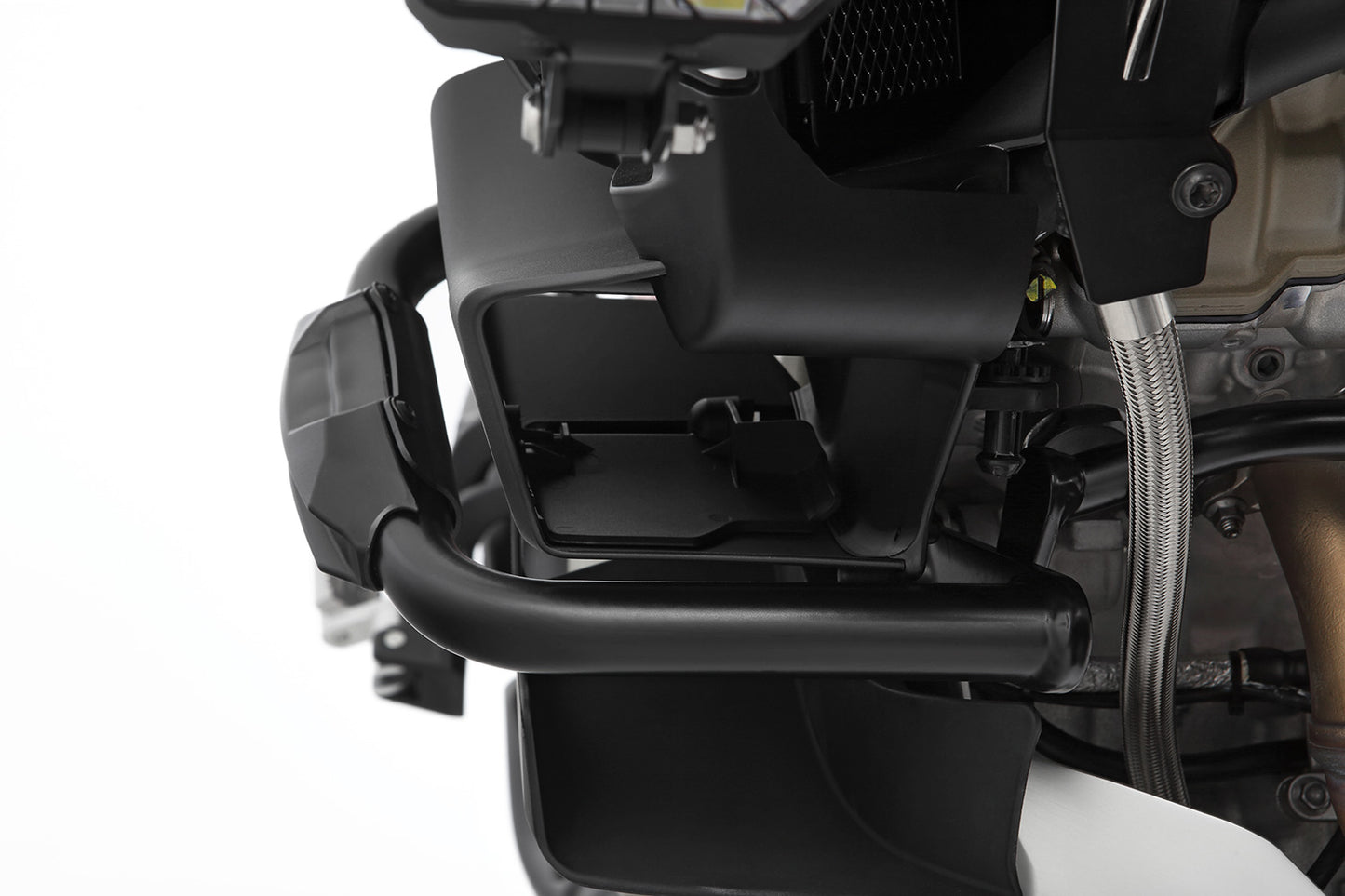

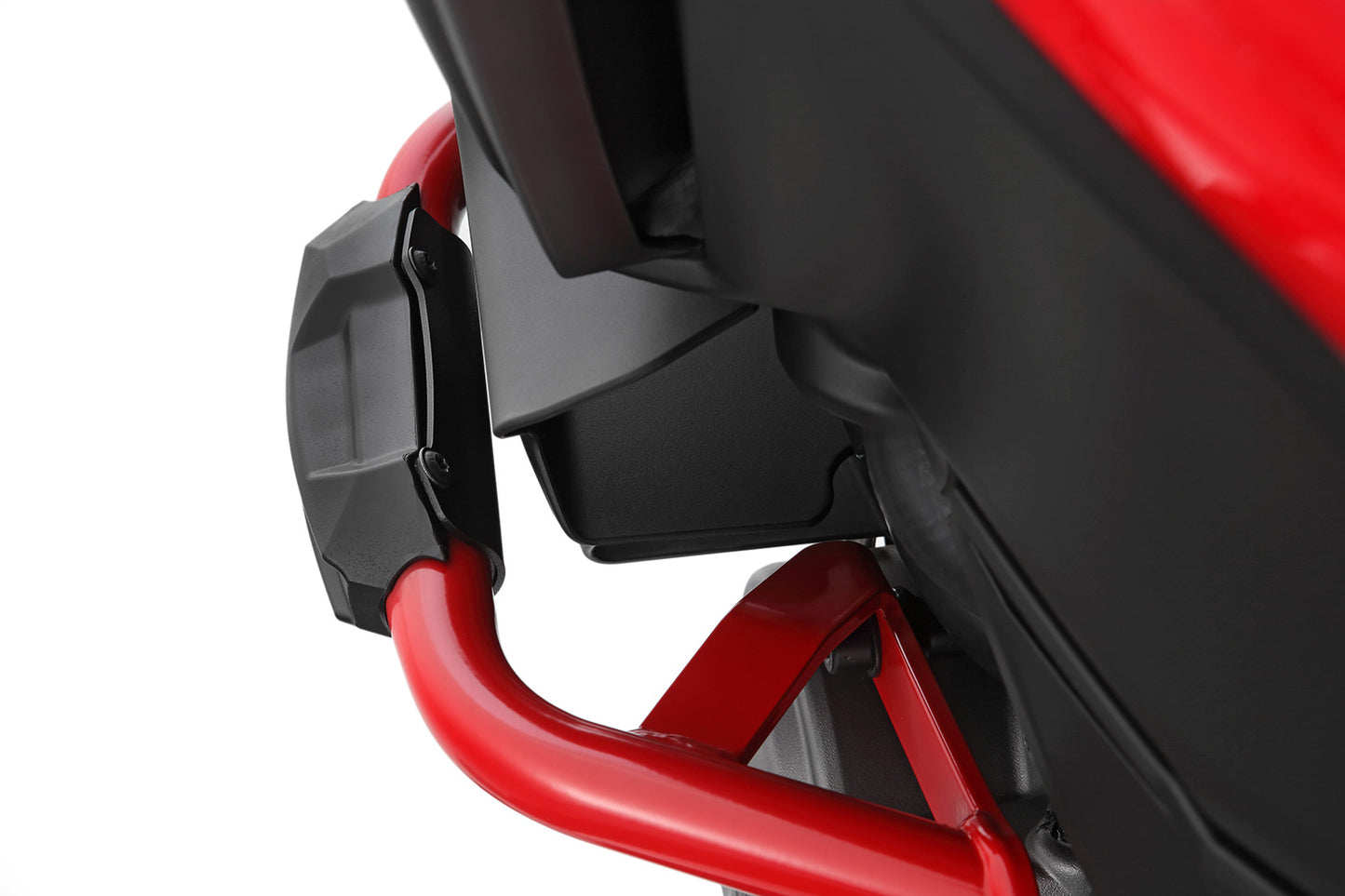

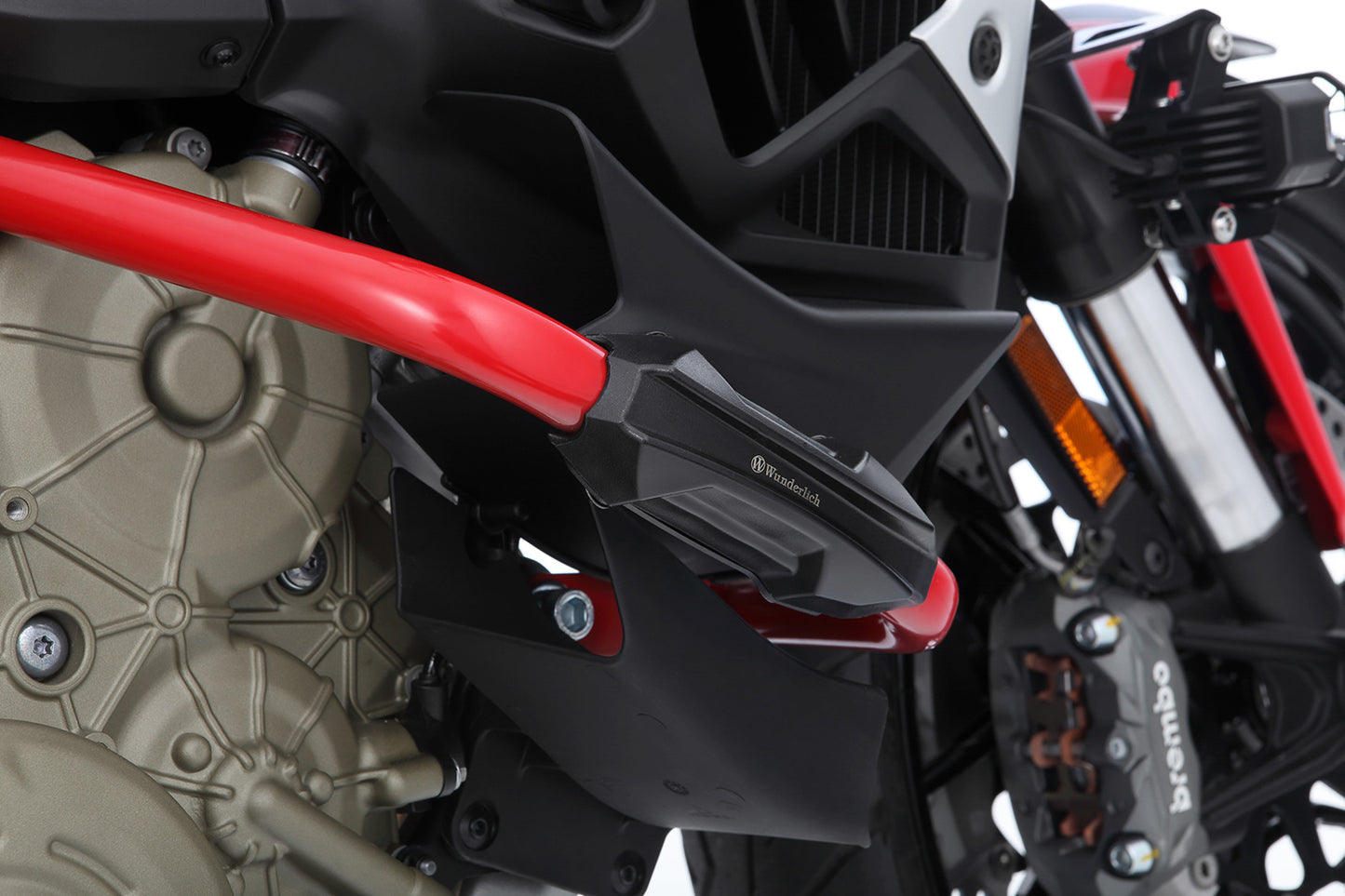

On top: bull bar protectors To complement the engine guard concept,we supply the engine guard with two mounted guard protectors #70211-002. They are included in the scope of delivery.

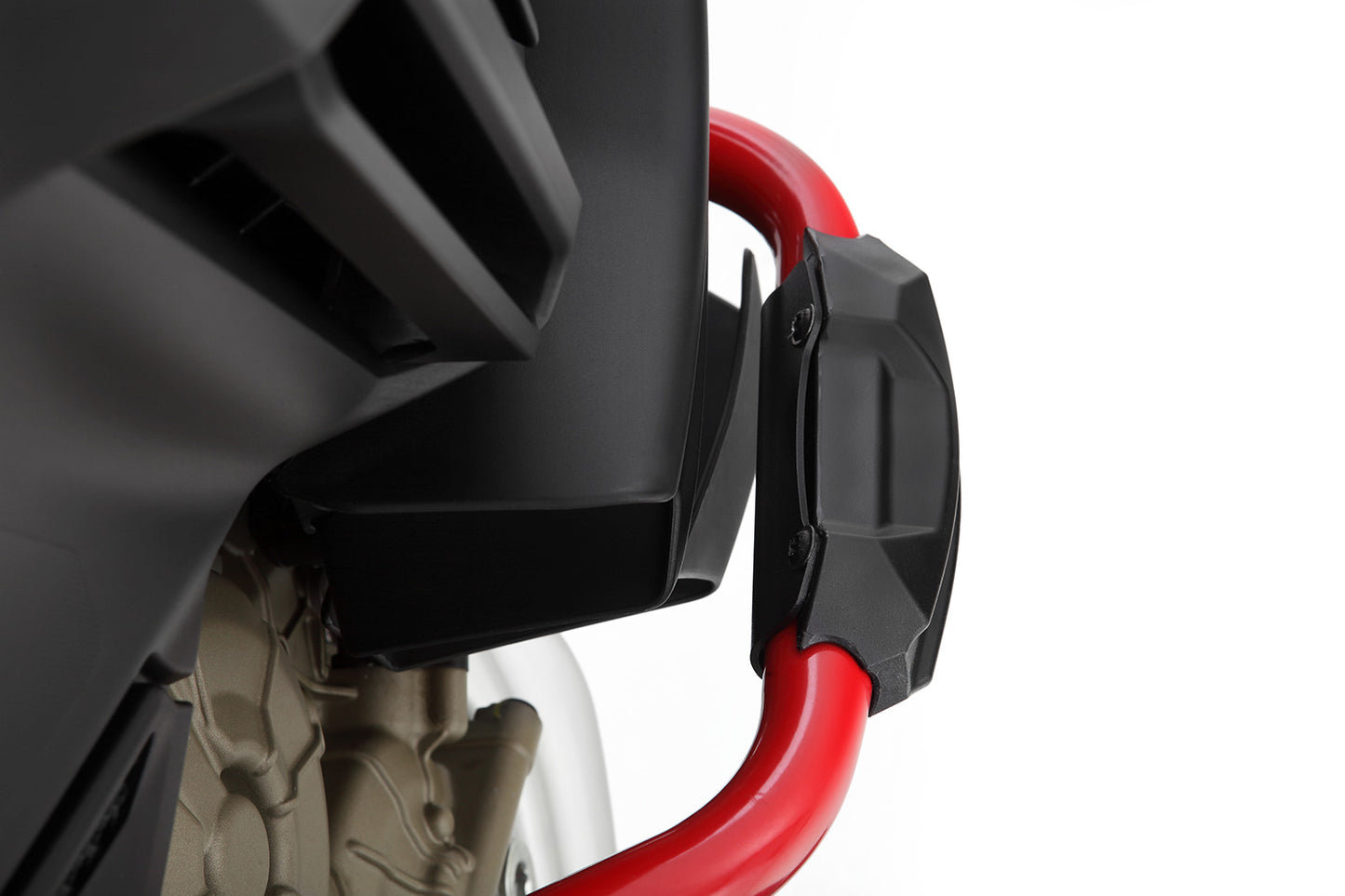

Our practical and helpful protectors are made of a resistant plastic material and reduce the risk of scratching the mudguards. They have a solid aluminium clamp and are fastened securely and reliably with four screws. The design is functional and looks noble due to the shape and surface finish.
Mounting is easy to accomplish.
The facts
Function
Perfectly designed,integrated protection for the high-performance engine and power units
Reduction of the risk of expensive secondary damage
Reduction of occurring force and torque peaks by distributing them to two solid mounting points each
No impairment of ground clearance
High component rigidity thanks to compact design - low weight
Including two pre-mounted guard protectors
Detailed and easy to understand instructions
Easy mounting thanks to precise fit
Delivery includes mounting material
Technical data: Material
Material: Precision steel tube with 25mm diameter, carefully bent on CNC tube bending machines, cleanly welded, red powder-coated.
Dimensions
Tube diameter 25 mm
Colour
red
Your Wunderlich benefits
Wunderlich premium product. Small series. Made by hand.
Wunderlich design. Integrated and functional.
Exclusive by Wunderlich
Made in Germany
5 years warranty
Model Additional information Multistrada V4 Multistrada V4 Pikes Peak Multistrada V4 Rally Multistrada V4 S
