Wunderlich engine protection bar »SPORT« - black

Our sporty engine protection bar concept combines maximum protection with low weight.

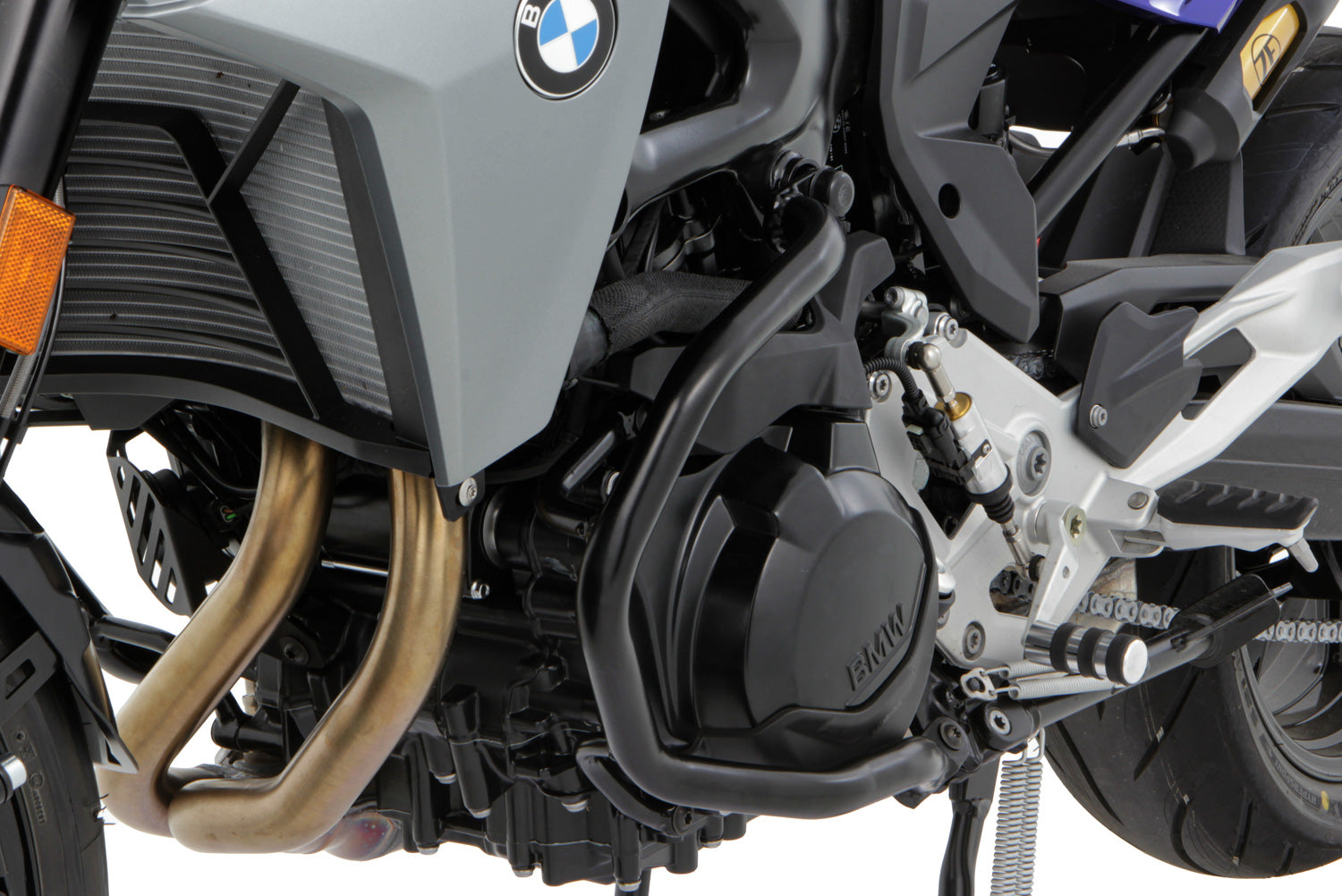

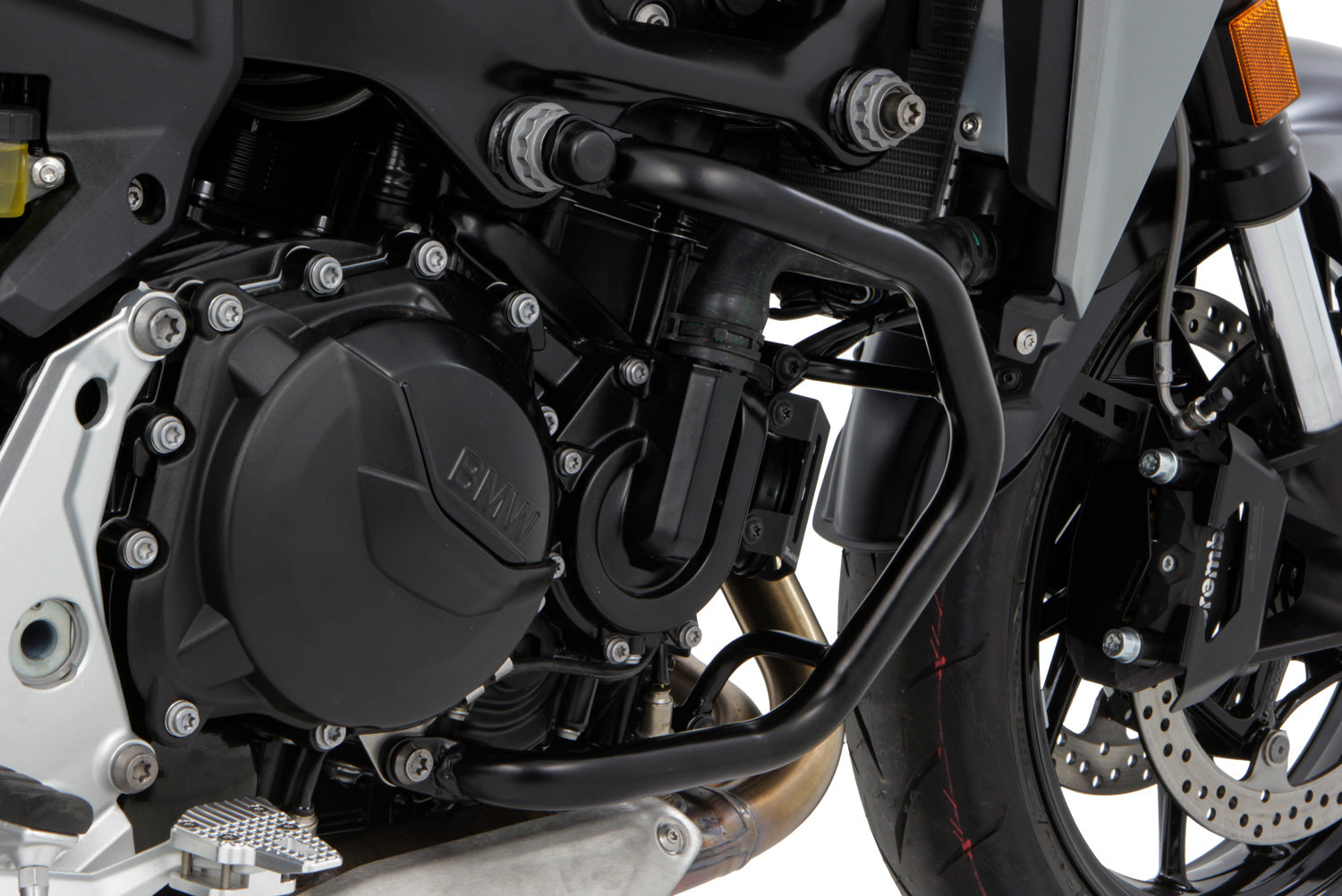

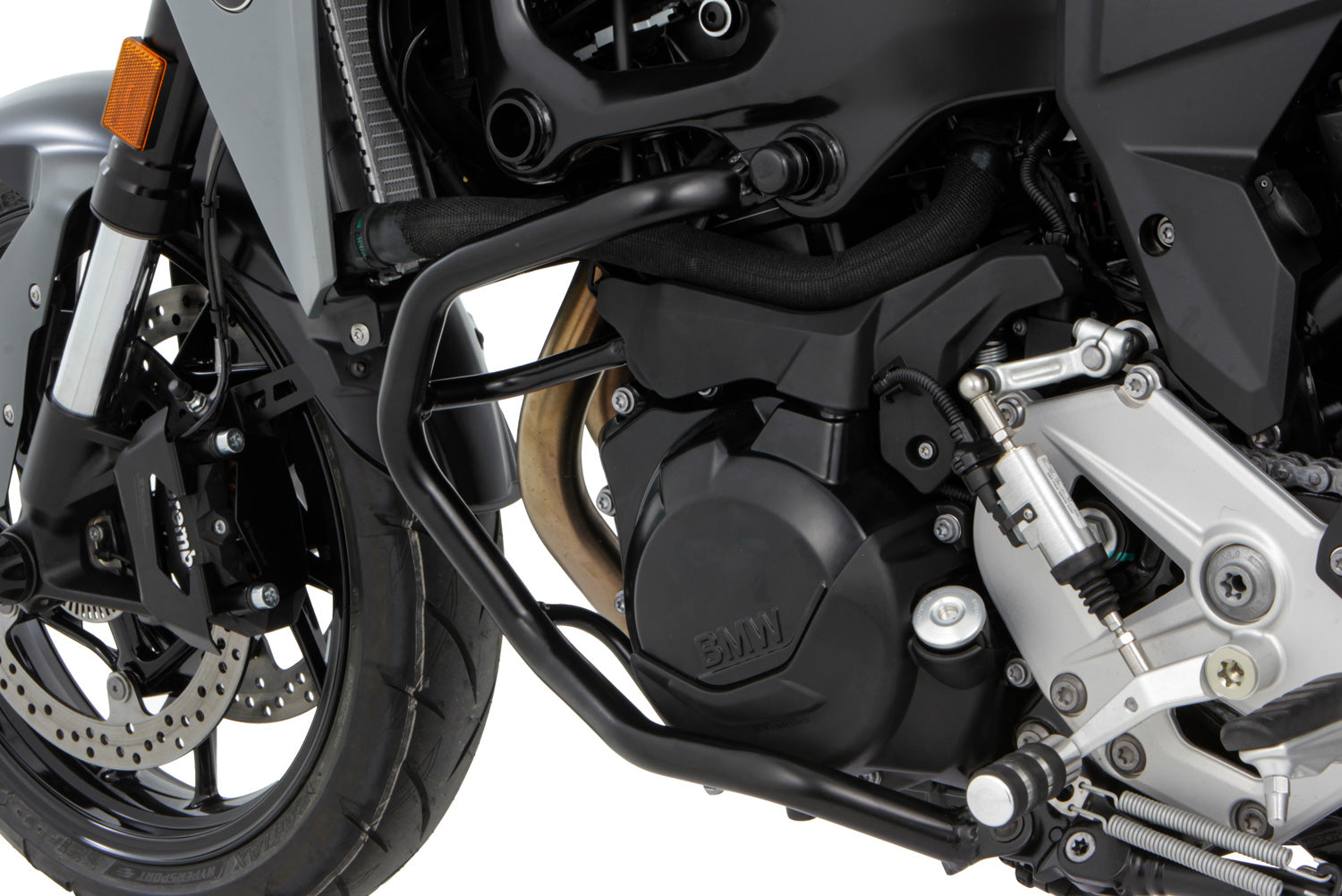

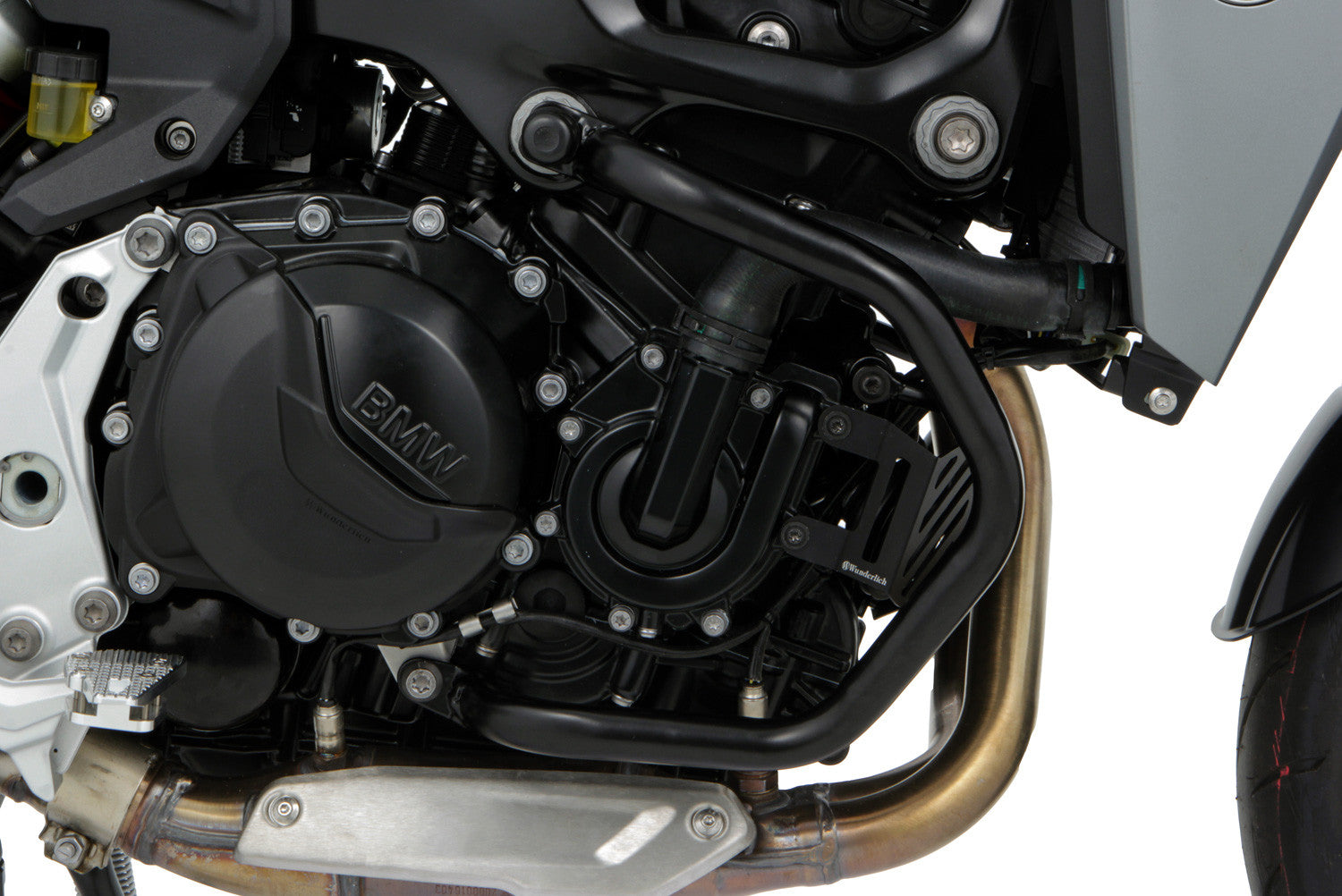

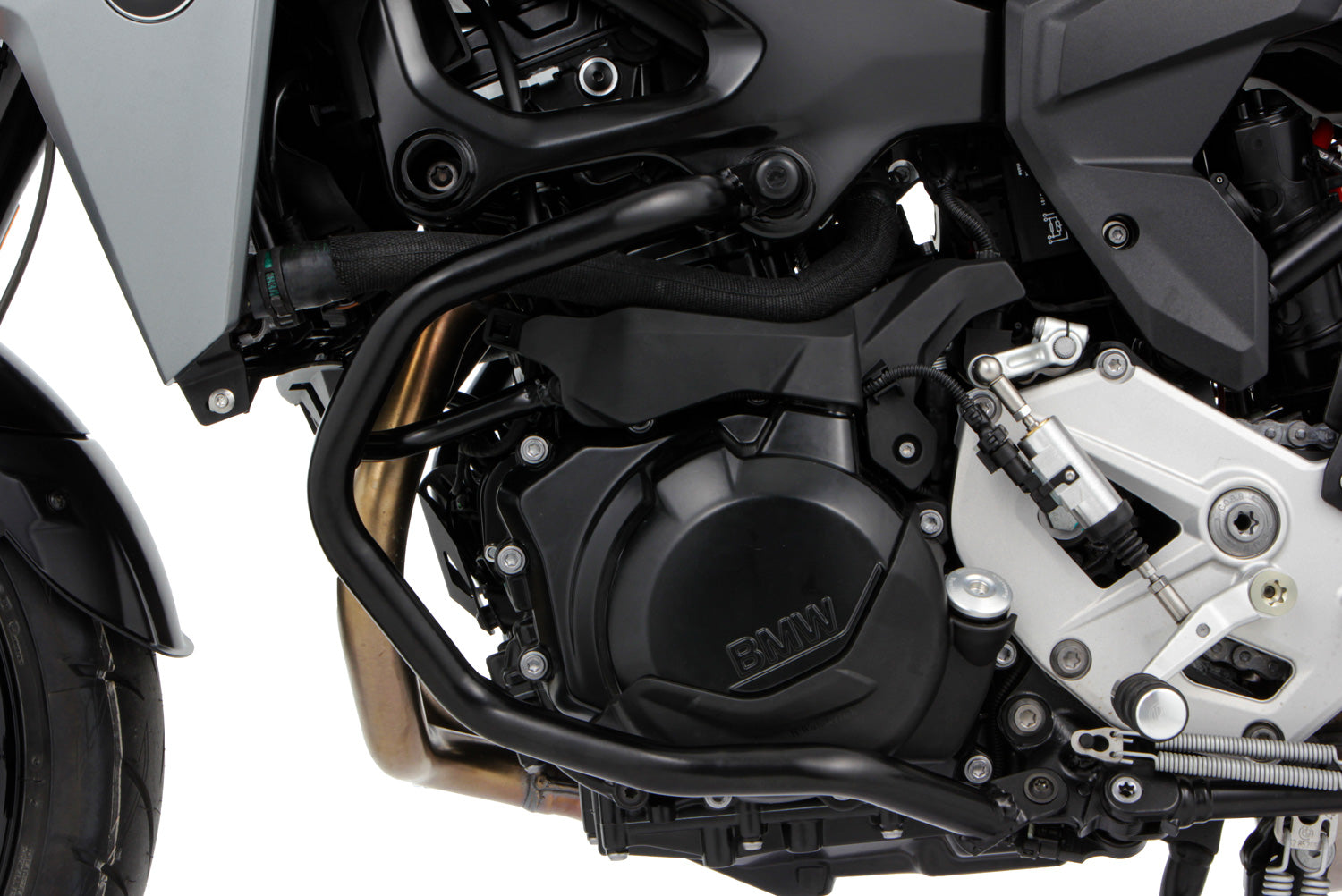

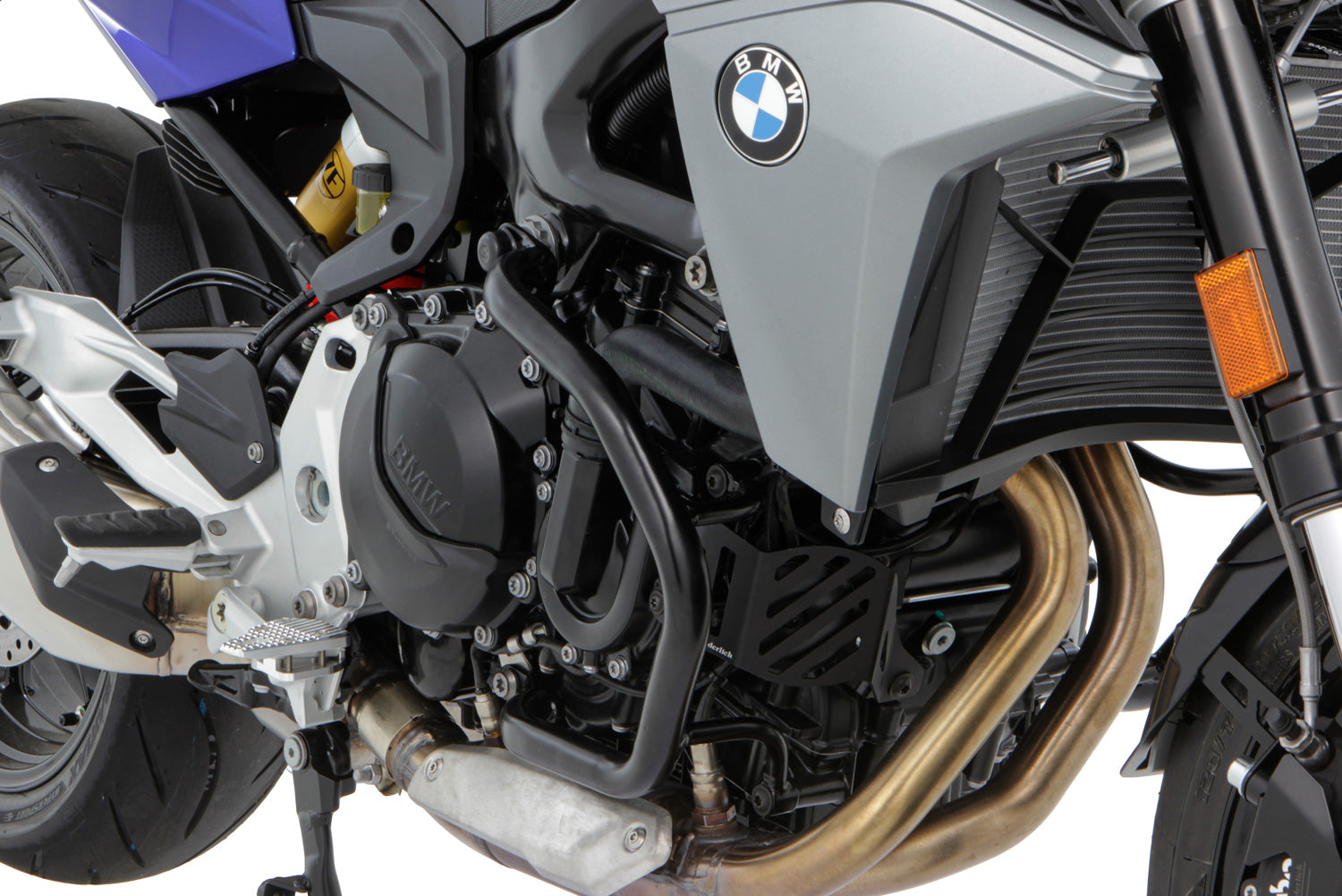

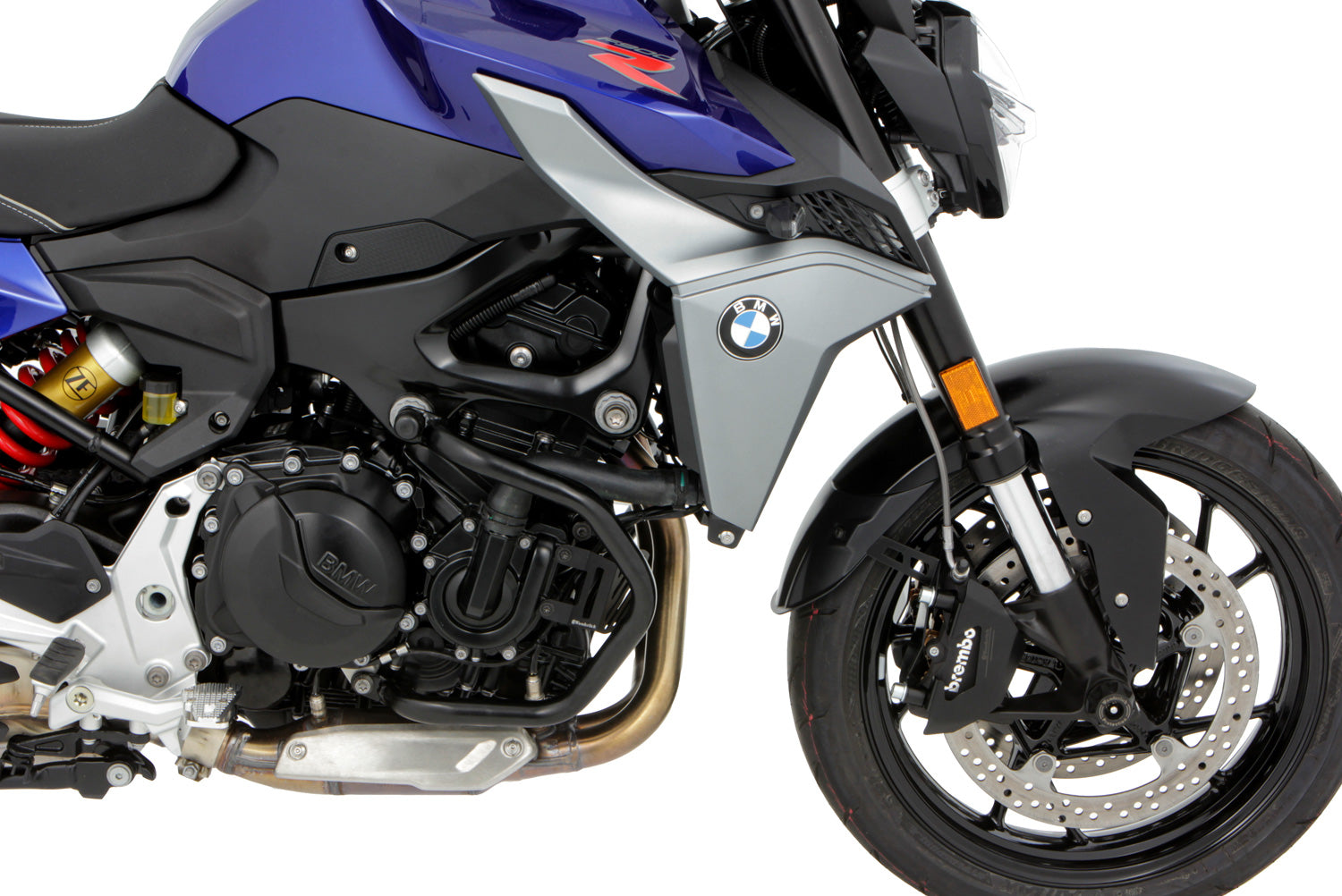

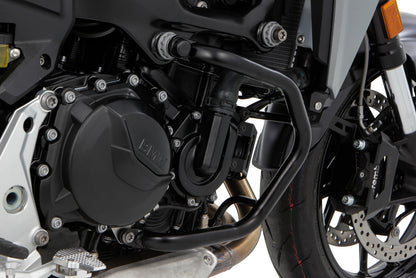

The geometry of this component means that the engine and in particular the water pump, clutch and alternator as well as their housing covers are optimally and reliably protected.

In addition to this comprehensive protection, we placed the utmost importance on ground clearance and lean angle freedom during the development and construction.

The two-part asymmetric engine protection bar thus sits snugly and its compact design also gives it additional stability and rigidity – and all while minimising the weight of the component.

The bars for left and right screw on to four selected attachment points.

The momentum and forces that arise during a crash or fall are thereby distributed across each of the four points on each side of the vehicle, this reduces load spikes.

The assembly is easy and it doesn't need to be removed during maintenance works.

The facts:

Function

• Perfect protection for engine and aggregates
• Maximum protection combined with minimal component weight
• No restriction of ground clearance
• Greatest possible lean angle freedom
• Reduction of arising forces/momentum by distributing these over each of the four attachment points on each side of the vehicle
• Maintenance work is possible without removing the bar
• Detailed yet easy-to-understand instructions
• Lighter and simpler installation thanks to the precise manufacturing
• Delivery includes installation material

Technical information

• Material: High-quality steel, precision formed on CNC pipe bending machines and clean welded, black powder-coated
• Pipe diameter of the main pipes: 25 mm

Features

• Wunderlich premium product. Small batches. Made by hand.
• Wunderlich design. Integrated and functional.
• Made in Europe

Wunderlich product category

• Protection
• Design
