Wunderlich tachometer - black-silver

The facts and product features of the tachometer for the BMW R nineT

• Perfectly complements the BMW R nineT's cockpit: The electronic Wunderlich tachometer

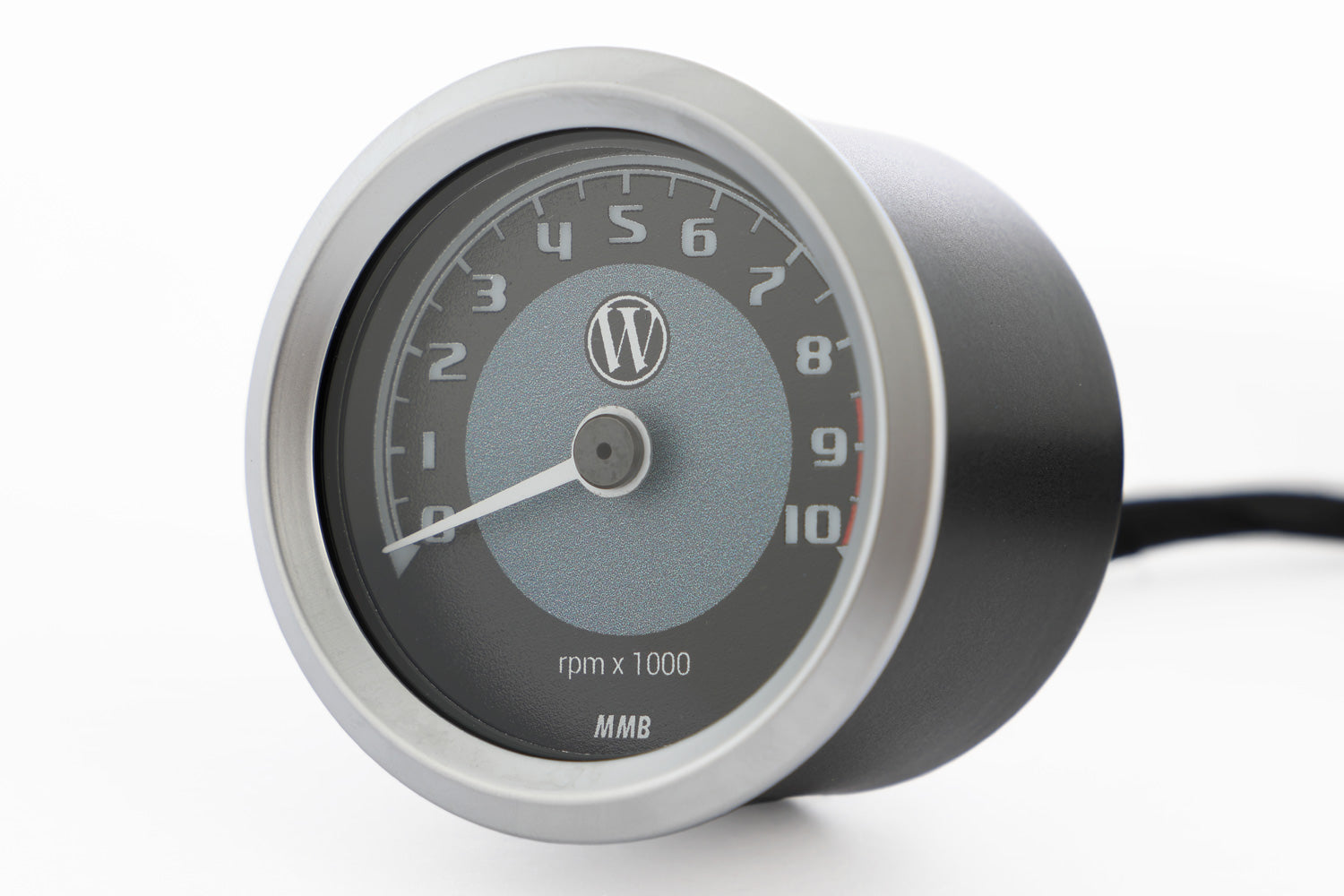

• Classic analog pointer display for engine speed
• Keep an eye on your boxer engine's speed at all times
• Perfectly integrates into the cockpit
• Mountable on the left or right, above the speedometer – Mounting and wiring kit included for connection
• Energy-saving LED illumination
• Individual brightness adjustment

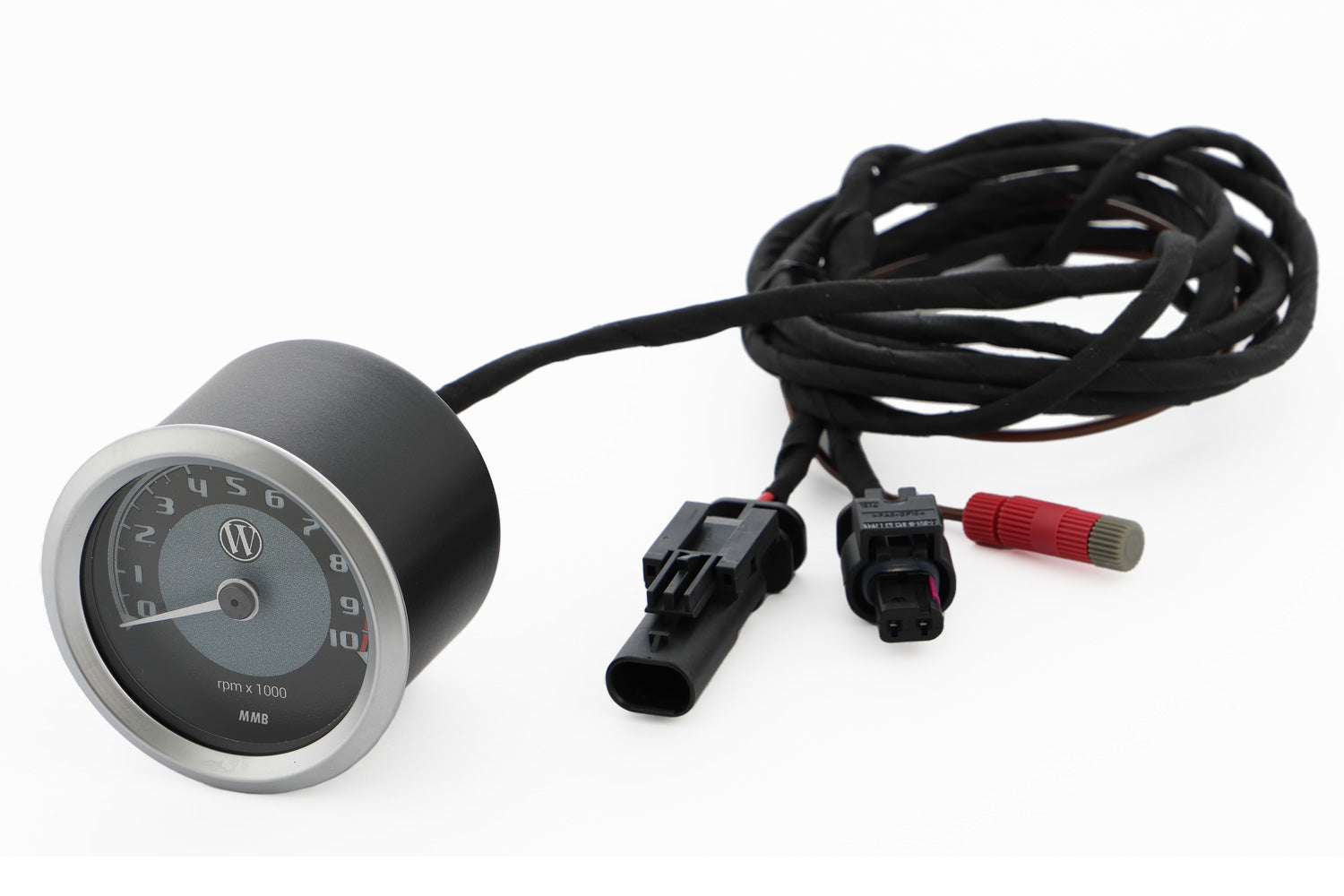

• Includes complete plug & play installation kit

Technical specifications

• 12V operating voltage
• Separate illumination positive for individual brightness adjustment
• Suitable for positive and negative input pulses
• Adjustable transmission ratio
• Temperature range -20 ... +85°C
• Current consumption with illumination maximum 70 mA
• Positive and negative pulse input for: i=1:2, 1:1, 2:1, 3:1
• Impulses from ignition box to ignition coil
• Display range
  •  0 – 12,000 rpm
• Dimensions
  • Case diameter: ø 48 mm
  • Bezel diameter: ø 52.5 mm
  • Installation depth: 46.3 mm
• Color
  • Black housing
  • Matte silver bezel

Your Wunderlich advantages

• Wunderlich product. Small series. Handmade.
• Wunderlich design. Functional and integrated.
• Made by Wunderlich
• Made in Germany
• 5 years warranty

Classic cockpits also feature a classic collection of analog instruments. Apart from the speedometer, this includes the tachometer. Unfortunately, many BMW R nineT models lack the standard analog tachometer and thereby the analog information about the respective engine speed of the air-cooled cult boxer!

Here it is! Suitable for R nineT models Scrambler, Urban G/S, Pure, and /5.

Easily programmable or adjustable with dip switches.

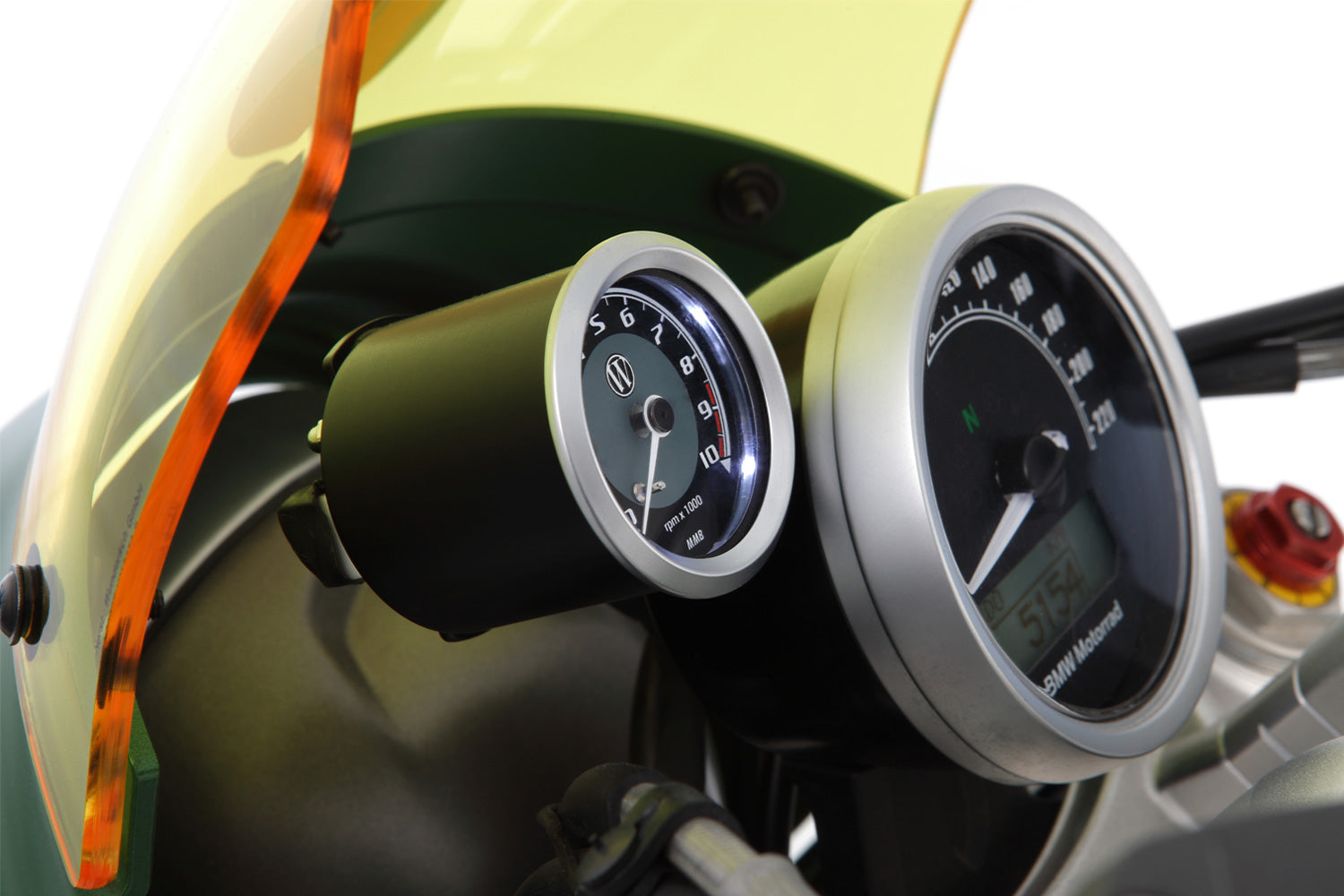

With this electronic tachometer for the R nineT models, we've ensured it perfectly integrates into the cockpit!

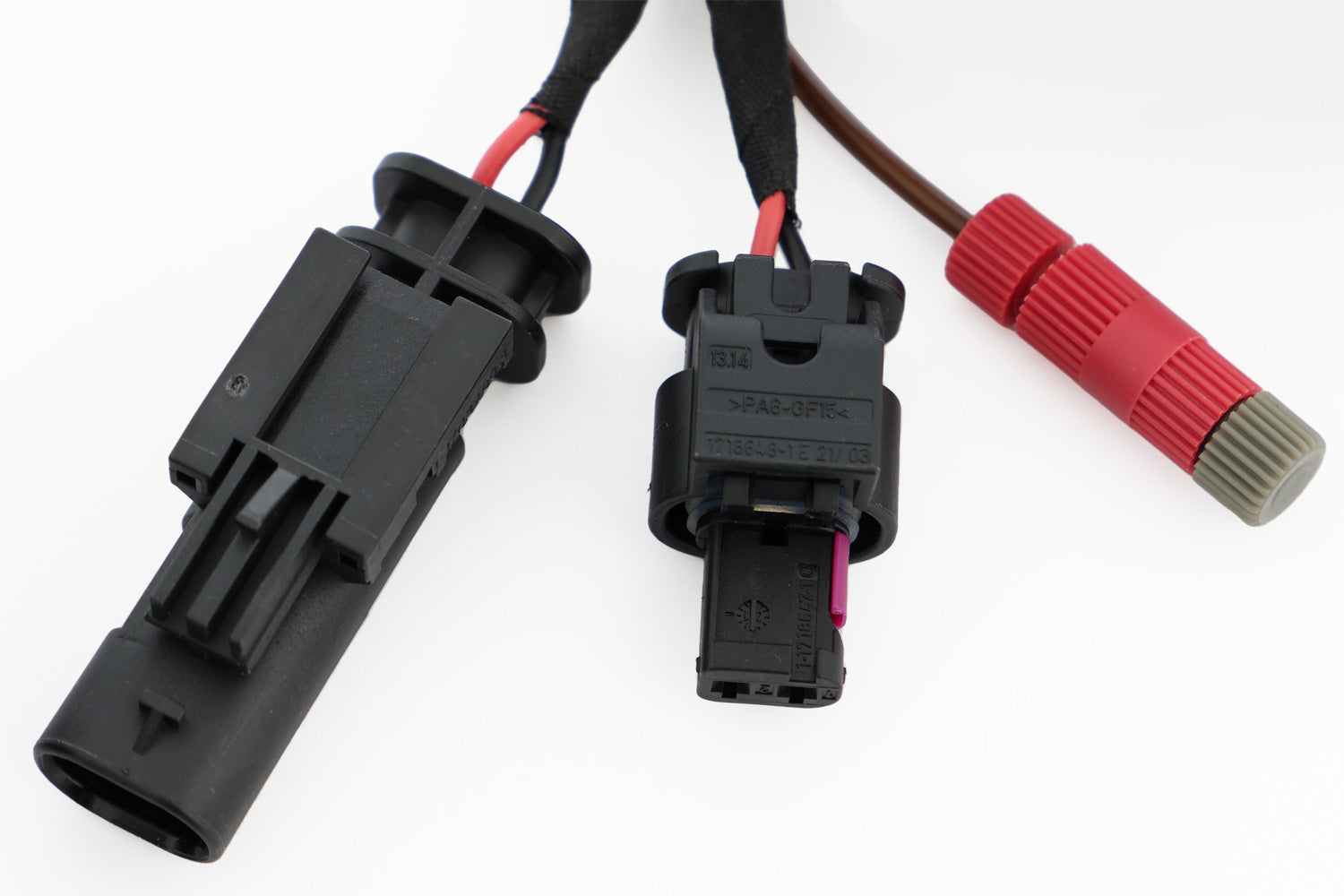

It can be mounted using the mounting kit on the left or right above the speedometer. The appropriate wiring harness for electrical connection is included.
